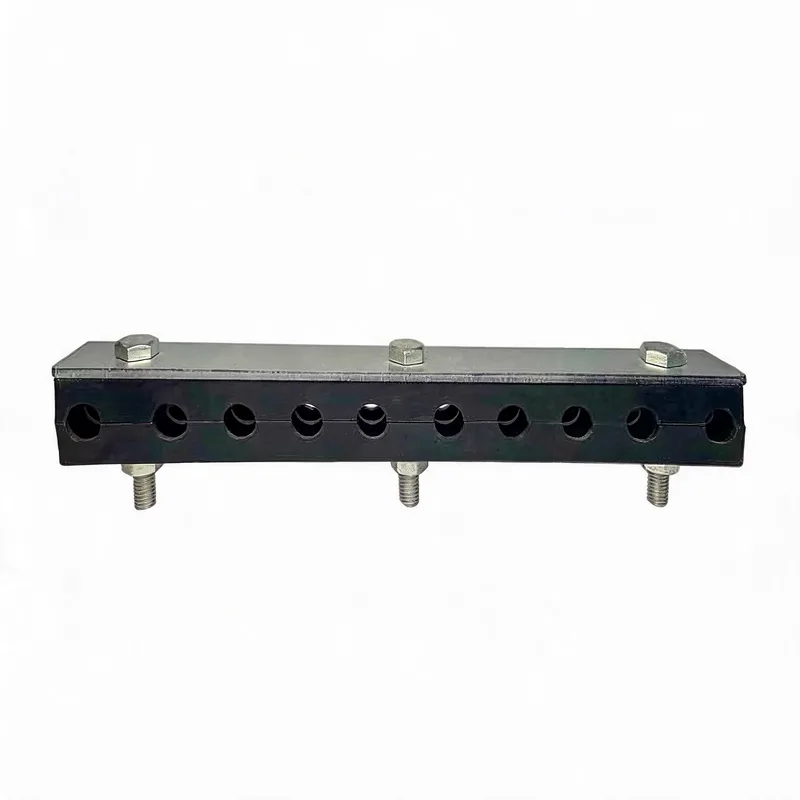

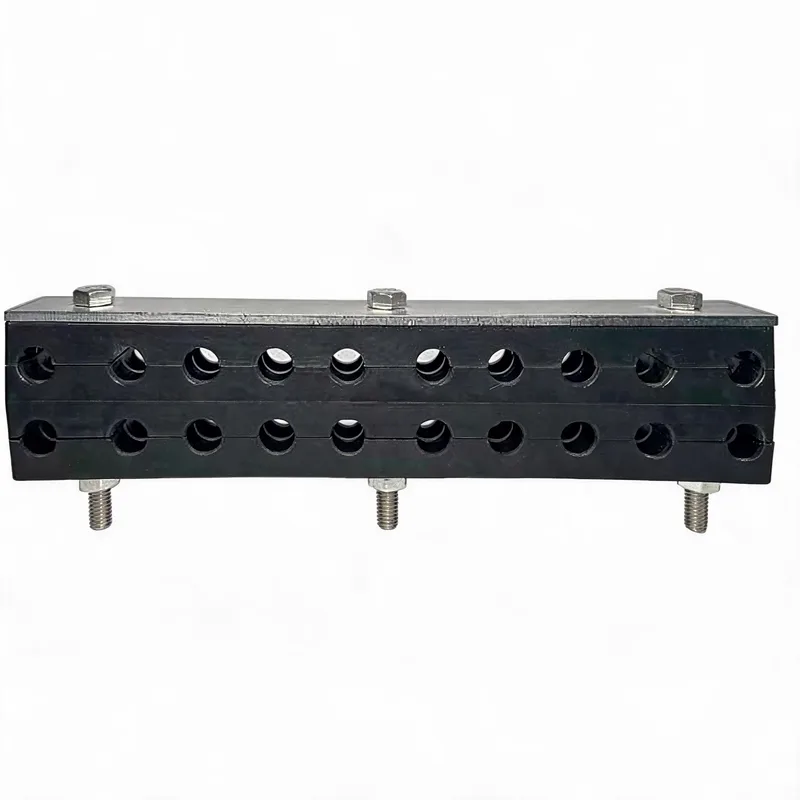

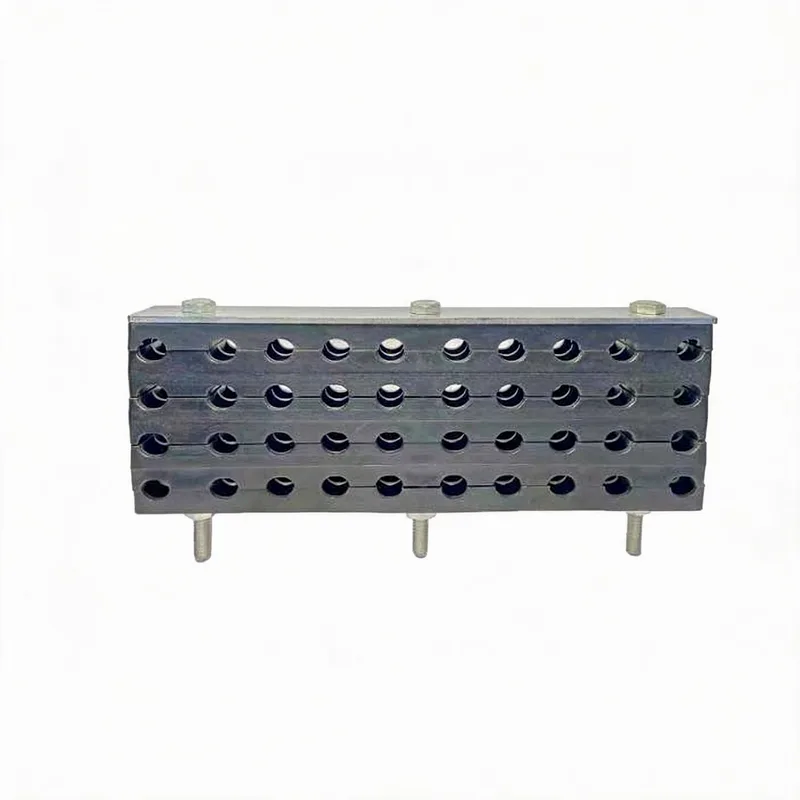

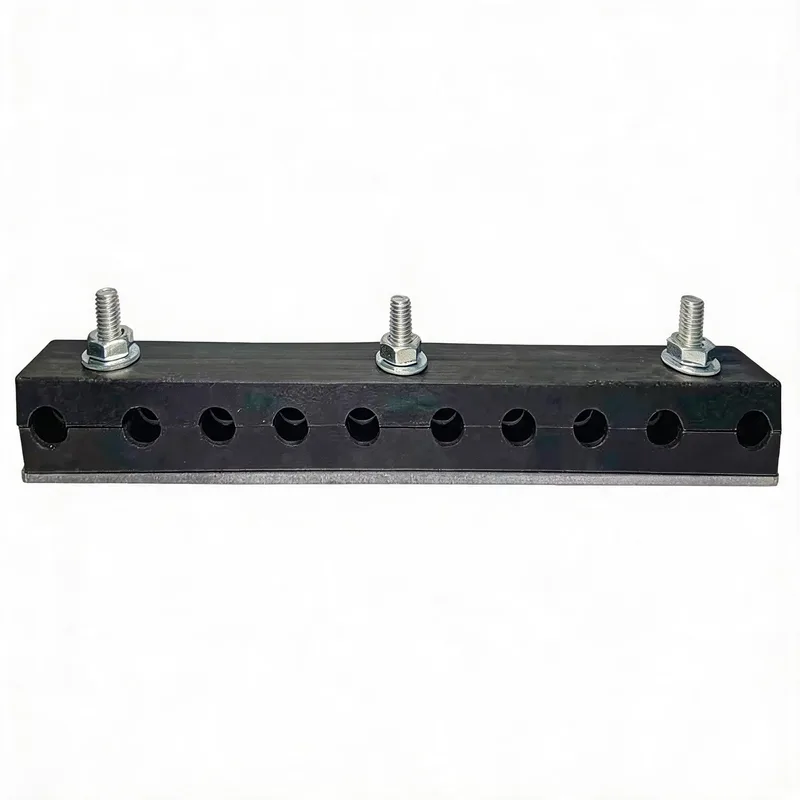

Stainless 316L Series
84 SKUs · OD ø6 – 273 mm · Marine spec
SKUs
84
OD Range
ø6 – 273 mm
Standard
AISI 316 / 316L
Prefix
WQB*
Technical notes for this selection
DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide
WQB*1-106
WQB*1 · Size 1 · ø6 mm
Type
Single bracket
Size
1
OD
ø6 mm
Request quote
WQB*2-106
WQB*2 · Size 1 · ø6 mm
Type
Twin bracket
Size
1
OD
ø6 mm
Request quote

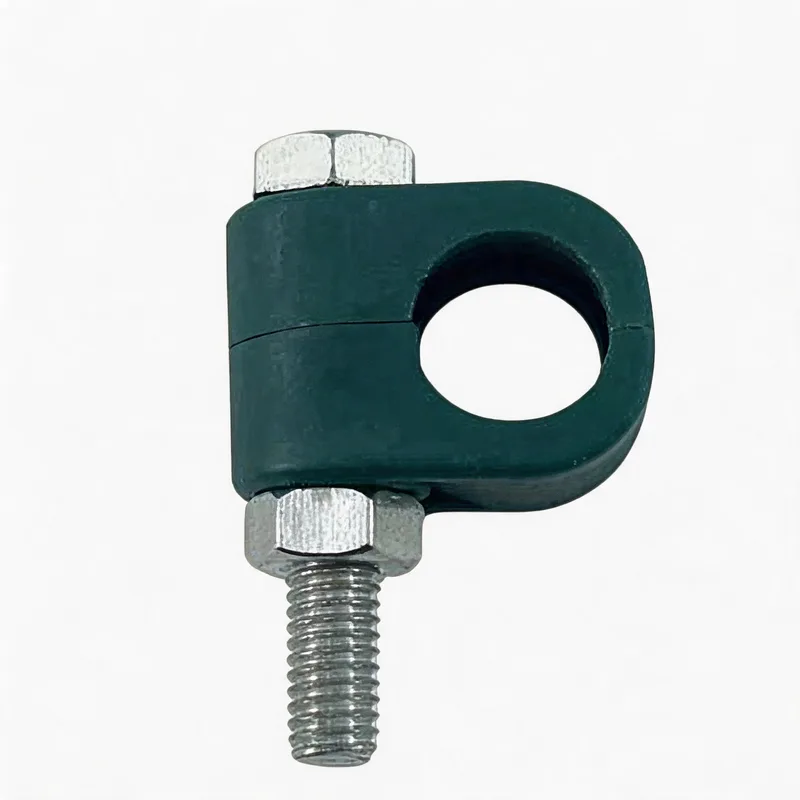

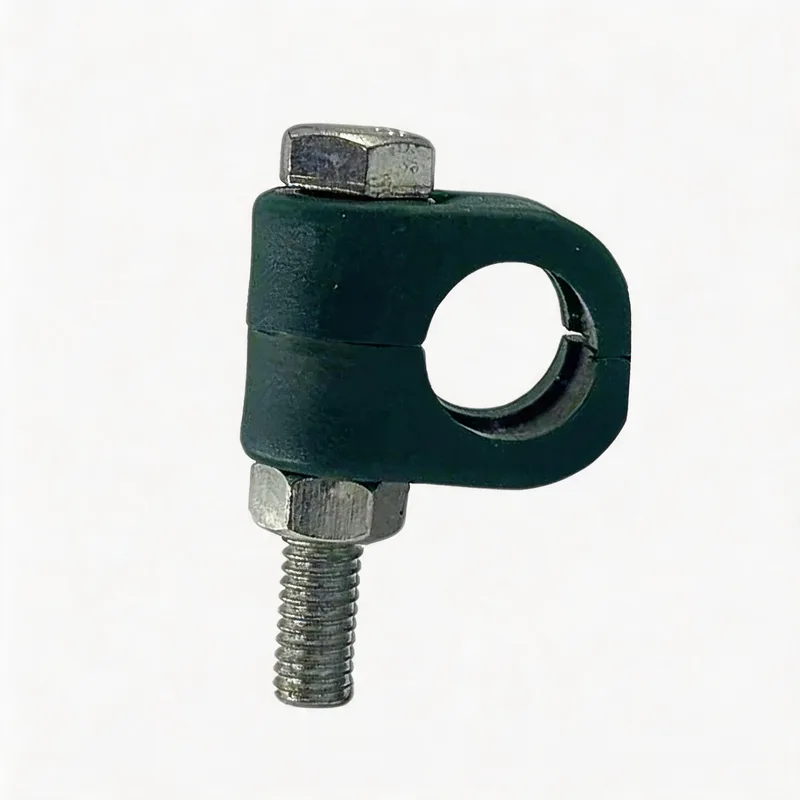

WQB*3-106
WQB*3 · Size 1 · ø6 mm
Type
Post single-hole
Size
1
OD
ø6 mm
Request quote

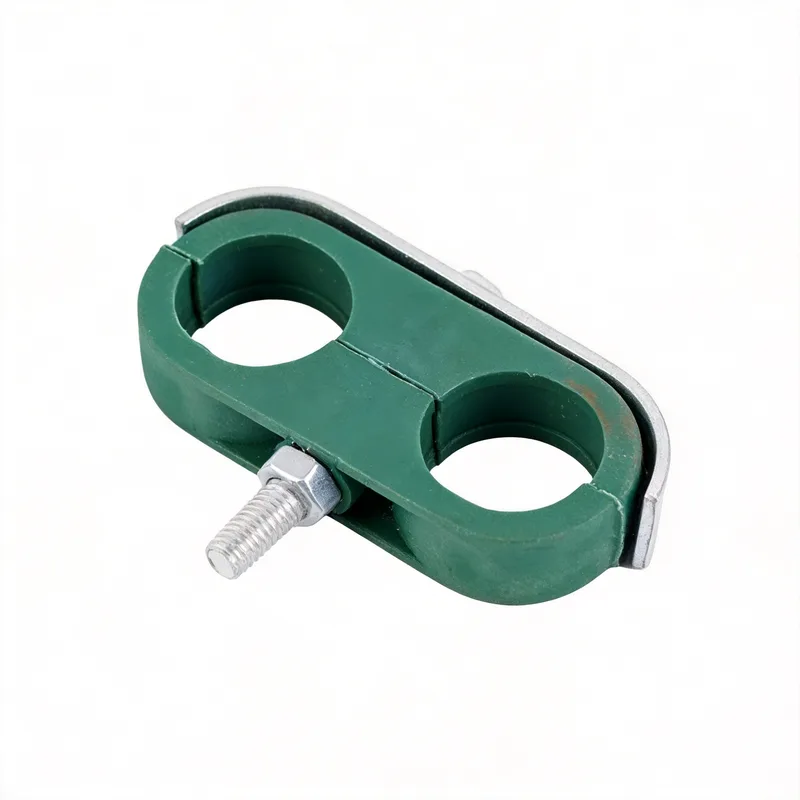

WQB*4-106
WQB*4 · Size 1 · ø6 mm
Type
Post double-hole
Size
1
OD
ø6 mm
Request quote
WQB*4-206
WQB*4 · Size 2 · ø6 mm
Type
Post double-hole
Size
2
OD
ø6 mm
Request quote
WQB*1-106.4
WQB*1 · Size 1 · ø6.4 mm
Type
Single bracket
Size
1
OD
ø6.4 mm
Request quote
WQB*2-106.4
WQB*2 · Size 1 · ø6.4 mm
Type
Twin bracket
Size
1
OD
ø6.4 mm
Request quote
WQB*3-106.4
WQB*3 · Size 1 · ø6.4 mm
Type
Post single-hole
Size
1
OD
ø6.4 mm
Request quote
WQB*4-106.4
WQB*4 · Size 1 · ø6.4 mm
Type
Post double-hole
Size
1
OD
ø6.4 mm
Request quote
WQB*1-108
WQB*1 · Size 1 · ø8 mm
Type
Single bracket
Size
1
OD
ø8 mm
Request quote
WQB*2-108
WQB*2 · Size 1 · ø8 mm
Type
Twin bracket
Size
1
OD
ø8 mm
Request quote
WQB*3-108
WQB*3 · Size 1 · ø8 mm
Type
Post single-hole
Size
1
OD
ø8 mm
Request quote
WQB*3-208
WQB*3 · Size 2 · ø8 mm
Type
Post single-hole
Size
2
OD
ø8 mm
Request quote
WQB*4-108
WQB*4 · Size 1 · ø8 mm
Type
Post double-hole
Size
1
OD
ø8 mm
Request quote
WQB*1-209.5
WQB*1 · Size 2 · ø9.5 mm
Type
Single bracket
Size
2
OD
ø9.5 mm
Request quote
WQB*2-209.5
WQB*2 · Size 2 · ø9.5 mm
Type
Twin bracket
Size
2
OD
ø9.5 mm
Request quote
WQB*3-209.5
WQB*3 · Size 2 · ø9.5 mm
Type
Post single-hole
Size
2
OD
ø9.5 mm
Request quote
WQB*4-209.5
WQB*4 · Size 2 · ø9.5 mm
Type
Post double-hole
Size
2
OD
ø9.5 mm
Request quote
WQB*1-210
WQB*1 · Size 2 · ø10 mm
Type
Single bracket
Size
2
OD
ø10 mm
Request quote
WQB*2-210
WQB*2 · Size 2 · ø10 mm
Type
Twin bracket
Size
2
OD
ø10 mm
Request quote
WQB*3-210
WQB*3 · Size 2 · ø10 mm
Type
Post single-hole
Size
2
OD
ø10 mm
Request quote
WQB*3-310
WQB*3 · Size 3 · ø10 mm
Type
Post single-hole
Size
3
OD
ø10 mm
Request quote
WQB*4-210
WQB*4 · Size 2 · ø10 mm
Type
Post double-hole
Size
2
OD
ø10 mm
Request quote
WQB*4-310
WQB*4 · Size 3 · ø10 mm
Type
Post double-hole
Size
3
OD
ø10 mm
Request quote
WQB · Small Pipe Clamp
WQB*1 · Single bracket
Series 1 · OD: 6, 6.4, 8 mm
| L1 | L2 | L3 | B | H | S | D2 | D3 | Order codes |
|---|---|---|---|---|---|---|---|---|
| 22 | 9 | 7 | 12 | 10 | 2 | 7 | 7 | WQB*1-106WQB*1-106.4WQB*1-108 |
Series 2 · OD: 9.5, 10, 12 mm
| L1 | L2 | L3 | B | H | S | D2 | D3 | Order codes |
|---|---|---|---|---|---|---|---|---|
| 27 | 11 | 7 | 16 | 15 | 2 | 7 | 7 | WQB*1-209.5WQB*1-210WQB*1-212 |
Series 3 · OD: 12.7, 13.5, 14, 15, 16, 17.2, 18 mm
| L1 | L2 | L3 | B | H | S | D2 | D3 | Order codes |
|---|---|---|---|---|---|---|---|---|
| 34 | 15 | 7 | 20 | 22 | 2 | 7 | 7 | WQB*1-312.7WQB*1-313.5WQB*1-314WQB*1-315WQB*1-316WQB*1-317.2WQB*1-318 |
Series 4 · OD: 19, 20, 21.3, 22, 25 mm
| L1 | L2 | L3 | B | H | S | D2 | D3 | Order codes |
|---|---|---|---|---|---|---|---|---|
| 42 | 19 | 4 | 20 | 30 | 2 | 7 | 7 | WQB*1-419WQB*1-420WQB*1-421.3WQB*1-422WQB*1-425 |
WQB*2 · Twin bracket
Series 1 · OD: 6, 6.4, 8 mm
| L1 | L2 | B | H | S | D3 | D4 | Order codes |
|---|---|---|---|---|---|---|---|
| 22 | 9 | 12 | 10 | 2 | 7 | 7 | WQB*2-106WQB*2-106.4WQB*2-108 |
Series 2 · OD: 9.5, 10, 12 mm
| L1 | L2 | B | H | S | D3 | D4 | Order codes |
|---|---|---|---|---|---|---|---|
| 27 | 11 | 16 | 15 | 2 | 7 | 7 | WQB*2-209.5WQB*2-210WQB*2-212 |
Series 3 · OD: 12.7, 13.5, 14, 15, 16, 17.2, 18 mm
| L1 | L2 | B | H | S | D3 | D4 | Order codes |
|---|---|---|---|---|---|---|---|
| 34 | 15 | 20 | 22 | 2 | 7 | 7 | WQB*2-312.7WQB*2-313.5WQB*2-314WQB*2-315WQB*2-316WQB*2-317.2WQB*2-318 |
Series 4 · OD: 19, 20, 21.3, 22, 25 mm
| L1 | L2 | B | H | S | D3 | D4 | Order codes |
|---|---|---|---|---|---|---|---|
| 42 | 19 | 20 | 30 | 2 | 7 | 7 | WQB*2-419WQB*2-420WQB*2-421.3WQB*2-422WQB*2-425 |

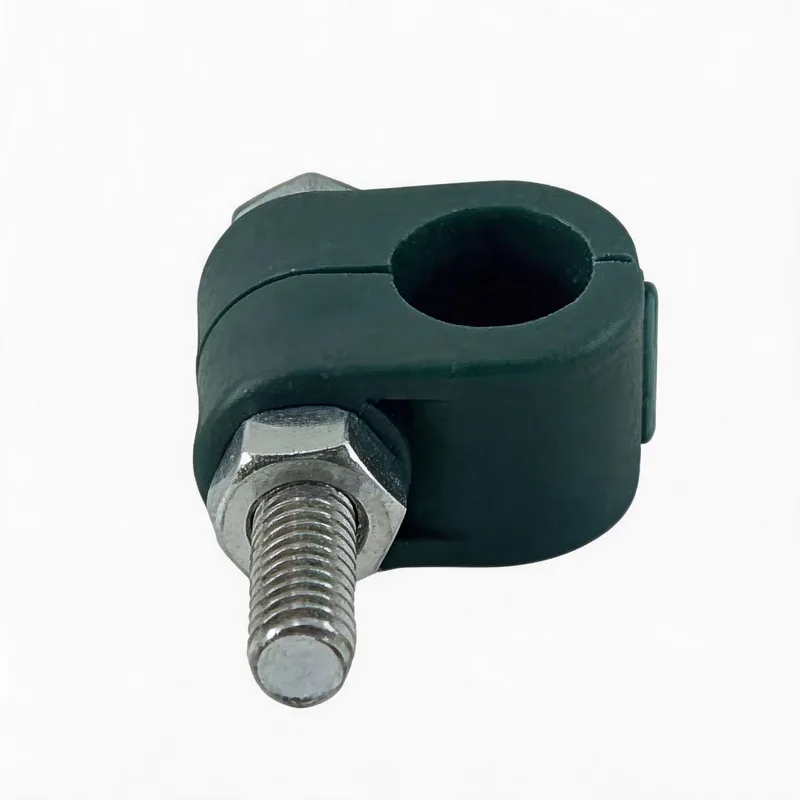

WQB*3 · Post-mount single-hole
Post: Φ12 / M6 / H=20 mm
Series 1 · OD: 6, 6.4, 8 mm
| L1 | L2 | L3 | B | H | D2 | Order codes |
|---|---|---|---|---|---|---|
| 22 | 9 | 7 | 14.5 | 13.5 | 7 | WQB*3-106WQB*3-106.4WQB*3-108 |
Series 2 · OD: 8, 9.5, 10, 12, 12.7 mm
| L1 | L2 | L3 | B | H | D2 | Order codes |
|---|---|---|---|---|---|---|
| 27 | 11 | 7 | 14.5 | 18.5 | 7 | WQB*3-208WQB*3-209.5WQB*3-210WQB*3-212WQB*3-212.7 |
Series 3 · OD: 10, 12, 12.7, 13.5, 14, 15, 16 mm
| L1 | L2 | L3 | B | H | D2 | Order codes |
|---|---|---|---|---|---|---|
| 33 | 15 | 7 | 14.5 | 23.5 | 7 | WQB*3-310WQB*3-312WQB*3-312.7WQB*3-313.5WQB*3-314WQB*3-315WQB*3-316 |
Series 4 · OD: 14, 15, 16, 17.2, 18, 19, 20, 21.3, 22 mm
| L1 | L2 | L3 | B | H | D2 | Order codes |
|---|---|---|---|---|---|---|
| 40 | 19 | 7 | 14.5 | 30.5 | 7 | WQB*3-414WQB*3-415WQB*3-416WQB*3-417.2WQB*3-418WQB*3-419WQB*3-420WQB*3-421.3WQB*3-422 |

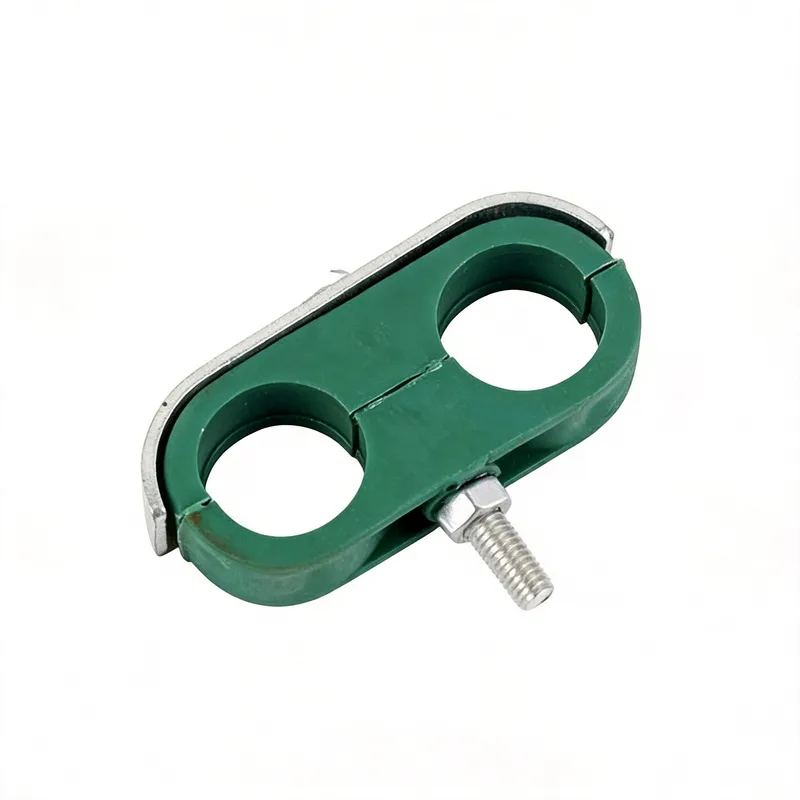

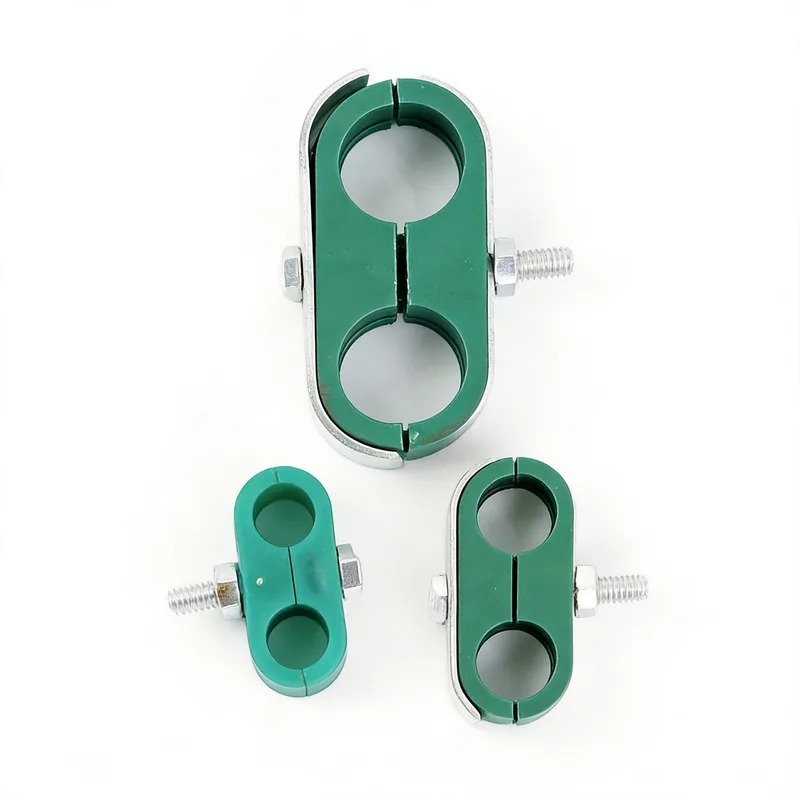

WQB*4 · Double-hole post-mount
Post: Φ12 / M6 / H=20 mm · Decimal-OD order code repeats: e.g. WQB*4-106.4/106.4
Series 1 · OD: 6, 6.4, 8 mm
| L1 | L2 | B | H | Order codes |
|---|---|---|---|---|
| 32 | 18 | 14.5 | 13.5 | WQB*4-106WQB*4-106.4/WQB*4-106.4WQB*4-108 |
Series 2 · OD: 6, 9.5, 10, 12, 12.7 mm
| L1 | L2 | B | H | Order codes |
|---|---|---|---|---|
| 41 | 22 | 14.5 | 18.5 | WQB*4-206WQB*4-209.5/WQB*4-209.5WQB*4-210WQB*4-212WQB*4-212.7/WQB*4-212.7 |
Series 3 · OD: 10, 12, 12.7, 13.5, 14, 15, 16 mm
| L1 | L2 | B | H | Order codes |
|---|---|---|---|---|
| 54 | 30 | 14.5 | 23.5 | WQB*4-310WQB*4-312WQB*4-312.7/WQB*4-312.7WQB*4-313.5/WQB*4-313.5WQB*4-314WQB*4-315WQB*4-316 |
Series 4 · OD: 14, 15, 16, 17.2, 18, 19, 20, 21.3, 22 mm
| L1 | L2 | B | H | Order codes |
|---|---|---|---|---|
| 70 | 38 | 14.5 | 30.5 | WQB*4-414WQB*4-415WQB*4-416WQB*4-417.2/WQB*4-417.2WQB*4-418WQB*4-419WQB*4-420WQB*4-421.3/WQB*4-421.3WQB*4-422 |
WQTA · Ta-Type Marine Pipe Hanger
Ta-type saddle pipe hanger for marine / offshore pipelines · OD 22–630 mm · 28 sizes · Listed weight is the U-stud only · dimensions in mm
| R | d | Dw | H | E | P | P1 | F | t | s | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | M8 | 22 | 45 | 30 | 80 | 38 | 40 | 5 | 22 | 0.09 |
| 18 | M8 | 27 | 50 | 30 | 88 | 44 | 40 | 5 | 22 | 0.13 |
| 21 | M8 | 34 | 55 | 30 | 96 | 50 | 40 | 5 | 22 | 0.15 |
| 25 | M8 | 42 | 65 | 30 | 104 | 60 | 40 | 5 | 22 | 0.21 |
| 28 | M10 | 48 | 70 | 34 | 110 | 66 | 40 | 5 | 22 | 0.29 |
| 34 | M10 | 60 | 85 | 34 | 120 | 78 | 40 | 5 | 22 | 0.35 |
| 42 | M12 | 76 | 105 | 45 | 154 | 96 | 50 | 6 | 30 | 0.39 |
| 49 | M12 | 89 | 115 | 45 | 167 | 110 | 50 | 6 | 30 | 0.58 |
| 61 | M16 | 114 | 145 | 55 | 204 | 138 | 63 | 7 | 35 | 0.93 |
| 74 | M16 | 140 | 175 | 55 | 230 | 164 | 63 | 7 | 35 | 1.37 |
| 88 | M16 | 168 | 205 | 55 | 258 | 196 | 63 | 7 | 35 | 1.86 |
| 101 | M20 | 194 | 230 | 60 | 300 | 222 | 80 | 8 | 40 | 2.37 |
| 114 | M20 | 219 | 255 | 60 | 324 | 248 | 80 | 8 | 40 | 2.63 |
| 127 | M20 | 245 | 285 | 60 | 348 | 274 | 80 | 8 | 40 | 2.95 |
| 141 | M20 | 273 | 315 | 60 | 378 | 302 | 80 | 8 | 40 | 3.3 |
| 167 | M24 | 325 | 370 | 74 | 454 | 358 | 90 | 10 | 50 | 5.59 |
| 182 | M24 | 355 | 400 | 74 | 484 | 388 | 90 | 10 | 50 | 6.85 |
| 193 | M24 | 377 | 420 | 74 | 504 | 410 | 90 | 10 | 50 | 8.63 |
| 207 | M24 | 406.4 | 450 | 74 | 534 | 438 | 100 | 10 | 50 | 9.73 |
| 217 | M24 | 426 | 470 | 74 | 554 | 458 | 100 | 10 | 50 | 10.55 |
| 233 | M30 | 457 | 505 | 80 | 592 | 496 | 100 | 12 | 50 | 10.97 |
| 244 | M30 | 480 | 530 | 80 | 620 | 518 | 100 | 12 | 50 | 11.63 |
| 258 | M30 | 508 | 560 | 80 | 642 | 546 | 100 | 12 | 50 | 11.98 |
| 269 | M30 | 530 | 580 | 80 | 650 | 568 | 100 | 12 | 50 | 12.19 |
| 284 | M30 | 558.8 | 610 | 85 | 700 | 598 | 125 | 12 | 50 | 13.22 |
| 284 | M30 | 560 | 610 | 85 | 700 | 598 | 125 | 12 | 50 | 13.7 |
| 309 | M30 | 610 | 660 | 85 | 744 | 648 | 125 | 12 | 50 | 14.5 |
| 319 | M30 | 630 | 680 | 85 | 770 | 668 | 125 | 12 | 50 | 14.97 |
WQTB · Tb-Type Marine Pipe Hanger
Tb-type double-saddle pipe hanger (1 bracket · 2 saddle · 3 U-stud · 4 nut) · OD 24–1048 mm · 38 sizes · Listed weight is the U-stud only · dimensions in mm
| R | d | Dw | H | E | P | P1 | F | t | kg |
|---|---|---|---|---|---|---|---|---|---|
| 12.5 | M8 | 24 | 45 | 25 | 59 | 33 | 40 | 5 | 0.06 |
| 13.5 | M8 | 25 | 45 | 25 | 61 | 35 | 40 | 5 | 0.09 |
| 16 | M8 | 30 | 50 | 30 | 68 | 40 | 40 | 5 | 0.12 |
| 17 | M8 | 32 | 50 | 30 | 70 | 42 | 40 | 5 | 0.13 |
| 20 | M10 | 38 | 60 | 30 | 80 | 50 | 40 | 5 | 0.14 |
| 23 | M10 | 44.5 | 70 | 32 | 86 | 56 | 40 | 5 | 0.2 |
| 28.5 | M12 | 55 | 80 | 35 | 109 | 69 | 50 | 6 | 0.25 |
| 29.5 | M12 | 57 | 80 | 35 | 111 | 71 | 50 | 6 | 0.29 |
| 36 | M12 | 70 | 95 | 38 | 124 | 84 | 50 | 6 | 0.37 |
| 43.5 | M12 | 85 | 110 | 38 | 139 | 99 | 50 | 6 | 0.61 |
| 45.5 | M12 | 89 | 115 | 38 | 143 | 103 | 50 | 6 | 0.65 |
| 53.5 | M16 | 105 | 135 | 45 | 163 | 123 | 63 | 8 | 0.79 |
| 55 | M16 | 108 | 135 | 45 | 166 | 126 | 63 | 8 | 0.83 |
| 66.5 | M16 | 130 | 160 | 50 | 190 | 149 | 63 | 8 | 0.92 |
| 72 | M16 | 155 | 185 | 50 | 200 | 160 | 63 | 8 | 1.22 |
| 81 | M16 | 159 | 190 | 50 | 218 | 178 | 63 | 8 | 1.3 |
| 104.5 | M20 | 206 | 245 | 60 | 309 | 229 | 80 | 8 | 2.31 |
| 111 | M20 | 219 | 260 | 60 | 322 | 242 | 80 | 8 | 2.47 |
| 130.5 | M20 | 260 | 300 | 70 | 361 | 281 | 80 | 10 | 2.61 |
| 135 | M20 | 267 | 310 | 70 | 370 | 290 | 80 | 10 | 3.13 |
| 155.5 | M30 | 308 | 355 | 70 | 441 | 341 | 90 | 10 | 4.83 |
| 163.5 | M30 | 323.9 | 362 | 80 | 457 | 357 | 90 | 10 | 5.73 |
| 181.5 | M30 | 360 | 406 | 80 | 493 | 393 | 90 | 10 | 6.07 |
| 185.5 | M30 | 368 | 415 | 80 | 501 | 401 | 90 | 10 | 7.75 |
| 211 | M30 | 419 | 475 | 80 | 552 | 452 | 100 | 10 | 10.28 |
| 219 | M30 | 429 | 495 | 80 | 568 | 468 | 100 | 10 | 11.33 |
| 231 | M30 | 457 | 520 | 80 | 592 | 492 | 100 | 12 | 12.48 |
| 257.5 | M30 | 508 | 575 | 80 | 645 | 545 | 100 | 12 | 13.97 |
| 269.5 | M30 | 530 | 600 | 80 | 669 | 569 | 100 | 12 | 15.37 |
| 306.5 | M30 | 610 | 685 | 85 | 743 | 643 | 100 | 12 | 17.13 |
| 321.5 | M36 | 635 | 715 | 100 | 779 | 679 | 125 | 12 | 22.4 |
| 359.5 | M36 | 711 | 790 | 100 | 855 | 755 | 125 | 12 | 24.12 |
| 373.5 | M36 | 738 | 820 | 100 | 883 | 783 | 125 | 12 | 26.33 |
| 411 | M36 | 813 | 895 | 140 | 958 | 858 | 125 | 12 | 28.01 |
| 426 | M36 | 842 | 925 | 140 | 988 | 888 | 125 | 12 | 29.33 |
| 478 | M36 | 914 | 990 | 140 | 1092 | 992 | 140 | 12 | 30.15 |
| 513 | M36 | 1016 | 1100 | 140 | 1162 | 1062 | 140 | 12 | 34.26 |
| 530 | M36 | 1048 | 1300 | 140 | 1196 | 1096 | 140 | 12 | 36.15 |
WQGF · Flat Steel Ship Clamp — Bolt Type
Flat-steel half-clamp fastened with through-bolts · DN50–DN600 (2″–24″) · 13 sizes · CS = Carbon Steel · SS = Stainless Steel · Fv = vertical load (kN) · Fc = clamping load (kN) · dimensions in mm
| DN | inch | A | B | C | E | H | K | L1 | L2 | T | W | Bolt | Qty | FvCS | FcCS | FvSS | FcSS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 2" | 70 | 40 | 22 | — | 36 | 166 | 122 | 270 | 5 | 50 | M12×50 | 2 | 2.1 | 3.6 | 3.5 | 6 |
| DN80 | 3" | — | — | — | — | 51 | 235 | 180 | 385 | — | 50 | M16×70 | 2 | 4.8 | 7.5 | 8 | 12.5 |
| DN100 | 4" | 124 | 50 | 28 | — | 63 | 260 | 206 | 479 | 8 | 50 | M16×70 | 2 | 3.9 | 7.2 | 6.5 | 12 |
| DN125 | 5" | 150 | 50 | 28 | — | 79 | 290 | 233 | 514 | 8 | 50 | M16×70 | 2 | 3 | 7.2 | 5 | 12 |
| DN150 | 6" | 178 | 70 | 34 | — | 90 | 345 | 278 | 617 | 10 | 50 | M20×80 | 2 | 6 | 13.2 | 10 | 22 |
| DN200 | 8" | 229 | 70 | 34 | — | 116 | 425 | 358 | 719 | 10 | 50 | M20×80 | 2 | 10.5 | 23.1 | 17.5 | 38.5 |
| DN250 | 10" | 283 | 134 | — | 70 | 140 | 565 | 426 | 995 | 15 | 70 | M20×80 | 4 | 18.9 | 45 | 31.5 | 75 |
| DN300 | 12" | 334 | 134 | — | 70 | 165 | 620 | 476 | 1107 | 15 | 70 | M20×80 | 4 | 16.2 | 45 | 27 | 75 |
| DN350 | 14" | 366 | 134 | — | 70 | 181 | 650 | 508 | 1221 | 15 | 70 | M24×100 | 4 | 14.7 | 45 | 24.5 | 75 |
| DN400 | 16" | 417 | 200 | 88 | 110 | 206 | 770 | 594 | 1405 | 20 | 80 | M24×100 | 4 | 30.6 | 85.8 | 51 | 143 |
| DN450 | 18" | 468 | 200 | 88 | 110 | 231 | 820 | 645 | 1535 | 20 | 80 | M24×100 | 4 | 27.3 | 85.8 | 45.5 | 143 |
| DN500 | 20" | 518 | 200 | 88 | 110 | 257 | 870 | 696 | 1699 | 20 | 80 | M24×100 | 4 | 25.8 | 85.8 | 41 | 142 |
| DN600 | 24" | 620 | 200 | 88 | 110 | 308 | 975 | 798 | 2029 | 20 | 100 | M24×100 | 4 | 20.4 | 85.2 | 34 | 142 |
WQHF · Heavy-Duty Flat Steel Ship Clamp
Reinforced four-bolt flat-steel clamp for heavy marine piping · DN50–DN150 (2″–6″) · 5 sizes · Material: carbon steel (galvanised) · R1 = inner pipe radius · R2 = liner inner radius · R3 = liner outer radius · R4 = clamp outer radius · U = bolt hole diameter · dimensions in mm
| DN | inch | R1 | R2 | R3 | R4 | L | W | T | U | Bolt | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 2" | 31 | 35 | 41 | 70 | 50 | 80 | 6 | 18 | M12×70 | 4 |
| DN80 | 3" | 45 | 49 | 55 | 85 | 50 | 80 | 6 | 18 | M12×70 | 4 |
| DN100 | 4" | 58 | 62 | 72 | 100 | 60 | 110 | 10 | 20 | M16×80 | 4 |
| DN125 | 5" | 71.5 | 75.5 | 85.5 | 110 | 60 | 110 | 10 | 20 | M16×80 | 4 |
| DN150 | 6" | 85 | 85 | 89 | 125 | 60 | 110 | 10 | 20 | M16×80 | 4 |
WQGFS · Flat Steel Ship Clamp — Studbolt Type
U-strap flat-steel clamp fastened with studbolts welded to baseplate · DN50–DN600 (2″–24″) · 13 sizes · CS = Carbon Steel · SS = Stainless Steel · Fv = vertical load (kN) · Fc = clamping load (kN) · dimensions in mm
| DN | inch | C | H | K | R | W | E | J | L | M | T | FvCS | FcCS | FvSS | FcSS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 2" | 92 | 6 | 130 | 35 | 50 | 20 | 1 | 80 | 10 | 60 | 9.6 | 2.1 | 16 | 3.5 |
| DN80 | 3" | 124 | 6 | 165 | 50 | 50 | 25 | 5 | 95 | 12 | 70 | 14.4 | 1.8 | 24 | 3 |
| DN100 | 4" | 148 | 6 | 190 | 62 | 50 | 30 | 10 | 115 | 12 | 85 | 14.4 | 1.5 | 24 | 2.5 |
| DN125 | 5" | 176 | 6 | 225 | 76 | 50 | 35 | 20 | 130 | 12 | 95 | 14.4 | 1.2 | 24 | 2 |
| DN150 | 6" | 206 | 6 | 260 | 89 | 50 | 55 | 10 | 155 | 16 | 100 | 27 | 1.5 | 45 | 2.5 |
| DN200 | 8" | 260 | 6 | 310 | 116 | 50 | 80 | 10 | 180 | 16 | 100 | 27 | 1.2 | 45 | 2 |
| DN250 | 10" | 326 | 10 | 380 | 143 | 60 | 100 | 15 | 210 | 20 | 110 | 42 | 2.4 | 70 | 4 |
| DN300 | 12" | 376 | 10 | 430 | 168 | 60 | 130 | 10 | 245 | 20 | 115 | 42 | 2.1 | 70 | 3.5 |
| DN350 | 14" | 408 | 10 | 460 | 184 | 60 | 140 | 10 | 260 | 20 | 115 | 42 | 1.8 | 70 | 3 |
| DN400 | 16" | 462 | 12 | 515 | 209 | 70 | 170 | 10 | 285 | 20 | 115 | 42 | 2.4 | 70 | 4 |
| DN450 | 18" | 518 | 12 | 575 | 235 | 70 | 190 | 15 | 320 | 24 | 130 | 61.2 | 2.7 | 102 | 4.5 |
| DN500 | 20" | 568 | 12 | 628 | 260 | 70 | 215 | 15 | 345 | 24 | 130 | 61.2 | 2.4 | 102 | 4 |
| DN600 | 24" | 670 | 12 | 730 | 311 | 100 | 255 | 25 | 400 | 24 | 145 | 61.2 | 2.4 | 102 | 4 |
