Home/Products/Metal Tube Clamp Series
WQM · Al / Steel / SS

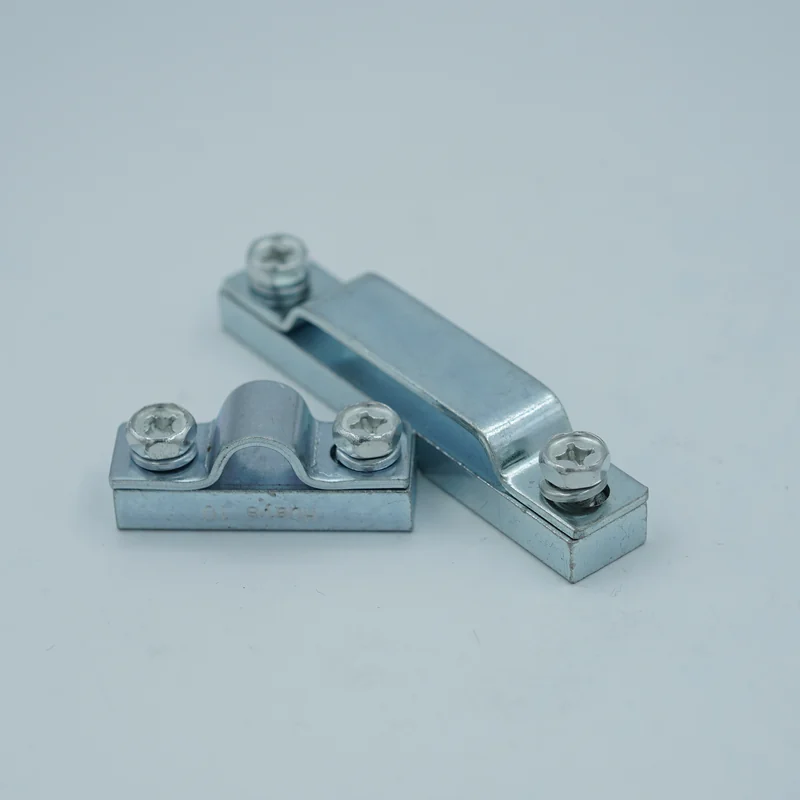

Metal Tube Clamp Series

68 SKUs · OD ø6 – 273 mm · −80 → +500 °C

SKUs
68
OD Range
ø6 – 273 mm
Standard
Al / Steel / SS
Prefix
WQM*
Related resources

Technical notes for this selection

DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide
PRODUCT SAMPLES
Showing 1–24 of 50
WQGJ×1-6 pipe clamp ø6mm — WQGJ×1 · ø6 mm
WQGJ×1-6
WQGJ×1 · ø6 mm
Config
Single pipe
Bolt
M6
OD
ø6 mm
Request quote
WQGJ×2-6 pipe clamp ø6mm — WQGJ×2 · ø6 mm
WQGJ×2-6
WQGJ×2 · ø6 mm
Config
Twin pipe
Bolt
M6
OD
ø6 mm
Request quote
WQGJ×3-6 pipe clamp ø6mm — WQGJ×3 · ø6 mm
WQGJ×3-6
WQGJ×3 · ø6 mm
Config
Three-pipe
Bolt
M6
OD
ø6 mm
Request quote
WQGJ×4-6 pipe clamp ø6mm — WQGJ×4 · ø6 mm
WQGJ×4-6
WQGJ×4 · ø6 mm
Config
Four-pipe
Bolt
M6
OD
ø6 mm
Request quote
WQGJ×1-8 pipe clamp ø8mm — WQGJ×1 · ø8 mm
WQGJ×1-8
WQGJ×1 · ø8 mm
Config
Single pipe
Bolt
M6
OD
ø8 mm
Request quote
WQGJ×2-8 pipe clamp ø8mm — WQGJ×2 · ø8 mm
WQGJ×2-8
WQGJ×2 · ø8 mm
Config
Twin pipe
Bolt
M6
OD
ø8 mm
Request quote
WQGJ×3-8 pipe clamp ø8mm — WQGJ×3 · ø8 mm
WQGJ×3-8
WQGJ×3 · ø8 mm
Config
Three-pipe
Bolt
M6
OD
ø8 mm
Request quote
WQGJ×4-8 pipe clamp ø8mm — WQGJ×4 · ø8 mm
WQGJ×4-8
WQGJ×4 · ø8 mm
Config
Four-pipe
Bolt
M6
OD
ø8 mm
Request quote
WQGJ×1-10 pipe clamp ø10mm — WQGJ×1 · ø10 mm
WQGJ×1-10
WQGJ×1 · ø10 mm
Config
Single pipe
Bolt
M6
OD
ø10 mm
Request quote
WQGJ×2-10 pipe clamp ø10mm — WQGJ×2 · ø10 mm
WQGJ×2-10
WQGJ×2 · ø10 mm
Config
Twin pipe
Bolt
M6
OD
ø10 mm
Request quote
WQGJ×3-10 pipe clamp ø10mm — WQGJ×3 · ø10 mm
WQGJ×3-10
WQGJ×3 · ø10 mm
Config
Three-pipe
Bolt
M6
OD
ø10 mm
Request quote
WQGJ×4-10 pipe clamp ø10mm — WQGJ×4 · ø10 mm
WQGJ×4-10
WQGJ×4 · ø10 mm
Config
Four-pipe
Bolt
M6
OD
ø10 mm
Request quote
WQGJ×1-12 pipe clamp ø12mm — WQGJ×1 · ø12 mm
WQGJ×1-12
WQGJ×1 · ø12 mm
Config
Single pipe
Bolt
M6
OD
ø12 mm
Request quote
WQGJ×2-12 pipe clamp ø12mm — WQGJ×2 · ø12 mm
WQGJ×2-12
WQGJ×2 · ø12 mm
Config
Twin pipe
Bolt
M6
OD
ø12 mm
Request quote
WQGJ×3-12 pipe clamp ø12mm — WQGJ×3 · ø12 mm
WQGJ×3-12
WQGJ×3 · ø12 mm
Config
Three-pipe
Bolt
M6
OD
ø12 mm
Request quote
WQGJ×4-12 pipe clamp ø12mm — WQGJ×4 · ø12 mm
WQGJ×4-12
WQGJ×4 · ø12 mm
Config
Four-pipe
Bolt
M6
OD
ø12 mm
Request quote
WQGJ×1-14 pipe clamp ø14mm — WQGJ×1 · ø14 mm
WQGJ×1-14
WQGJ×1 · ø14 mm
Config
Single pipe
Bolt
M6
OD
ø14 mm
Request quote
WQGJ×2-14 pipe clamp ø14mm — WQGJ×2 · ø14 mm
WQGJ×2-14
WQGJ×2 · ø14 mm
Config
Twin pipe
Bolt
M6
OD
ø14 mm
Request quote
WQGJ×3-14 pipe clamp ø14mm — WQGJ×3 · ø14 mm
WQGJ×3-14
WQGJ×3 · ø14 mm
Config
Three-pipe
Bolt
M6
OD
ø14 mm
Request quote
WQGJ×4-14 pipe clamp ø14mm — WQGJ×4 · ø14 mm
WQGJ×4-14
WQGJ×4 · ø14 mm
Config
Four-pipe
Bolt
M6
OD
ø14 mm
Request quote
WQGJ×1-16 pipe clamp ø16mm — WQGJ×1 · ø16 mm
WQGJ×1-16
WQGJ×1 · ø16 mm
Config
Single pipe
Bolt
M6
OD
ø16 mm
Request quote
WQGJ×2-16 pipe clamp ø16mm — WQGJ×2 · ø16 mm
WQGJ×2-16
WQGJ×2 · ø16 mm
Config
Twin pipe
Bolt
M6
OD
ø16 mm
Request quote
WQGJ×3-16 pipe clamp ø16mm — WQGJ×3 · ø16 mm
WQGJ×3-16
WQGJ×3 · ø16 mm
Config
Three-pipe
Bolt
M6
OD
ø16 mm
Request quote
WQGJ×4-16 pipe clamp ø16mm — WQGJ×4 · ø16 mm
WQGJ×4-16
WQGJ×4 · ø16 mm
Config
Four-pipe
Bolt
M6
OD
ø16 mm
Request quote

WQGJ · Heavy-duty Pipe Clamp

Carbon steel: WQGJ×1C-16 (no base) · WQGJ×1C-16A(B) (with base) · Stainless: WQGJ×1B-16 (no base) · WQGJ×1B-16A(B) (with base)

WQGJ×1 · Single pipe

Order codeODPhALBdPlate LPlate BHPlate ACD
WQGJ×1-6622254015740158257.5M6
WQGJ×1-8822284315743158287.5M6
WQGJ×1-101022304515745158307.5M6
WQGJ×1-121222324715747158327.5M6
WQGJ×1-141422355015750158357.5M6
WQGJ×1-161622385315753158387.5M6
WQGJ×1-181822405515755158407.5M6
WQGJ×1-222222456015760158457.5M6
WQGJ×1-242422486315763158487.5M6
WQGJ×1-282822506515765158507.5M6
WQGJ×1-34343565852098520146510M8
WQGJ×1-42423570902099020147010M8
WQGJ×1-4848358010020910020148010M8
WQGJ×1-6060359011020911020149010M8
WQGJ×1-767645110135259135251411010M8
WQGJ×1-898945125150259150251412510M8

WQGJ×2 · Twin pipe

Order codeODPhALaBdPlate LPlate BHL1CD
WQGJ×2-662235501215750158357.5M6
WQGJ×2-882240551215755158407.5M6
WQGJ×2-10102244591415759158447.5M6
WQGJ×2-12122248631615763158487.5M6
WQGJ×2-14142254691815769158547.5M6
WQGJ×2-16162258732015773158587.5M6
WQGJ×2-18182262772215777158627.5M6
WQGJ×2-22222272872615787158727.5M6
WQGJ×2-24242276912815791158767.5M6
WQGJ×2-28282282973215797158827.5M6
WQGJ×2-34343510412438209124201410410M8
WQGJ×2-42423511613646209136201411610M8
WQGJ×2-48483513015654209156201413010M8
WQGJ×2-60603515517565209175201415510M8

WQGJ×3 · Three-pipe

Order codeODALaSPlate LBHPlate ACD
WQGJ×3-66456010260158457.5M6
WQGJ×3-88526712267158527.5M6
WQGJ×3-1010587314273158587.5M6
WQGJ×3-1212647916279158647.5M6
WQGJ×3-1414728718287158727.5M6
WQGJ×3-1616789320293158787.5M6
WQGJ×3-1818849922299158847.5M6
WQGJ×3-222298113262113158987.5M6
WQGJ×3-24241041192821191581047.5M6
WQGJ×3-28281141293221291581147.5M6

WQGJ×4 · Four-pipe

Order codeODALaSPlate LBHPlate ACD
WQGJ×4-66456010270158557.5M6
WQGJ×4-88526712279158647.5M6
WQGJ×4-1010587314287158727.5M6
WQGJ×4-1212647916295158807.5M6
WQGJ×4-14147287182105158907.5M6
WQGJ×4-16167893202113158987.5M6
WQGJ×4-181884992221211581067.5M6
WQGJ×4-2222981132621391581247.5M6
WQGJ×4-24241041192821471581327.5M6
WQGJ×4-28281141293221611581467.5M6

WQL×1T · Light Pipe Clamp

DIN3015 standard light pipe clamps · Materials: PP (polypropylene) · PA (nylon 6) · Al (aluminium) · Carbon steel · Stainless steel

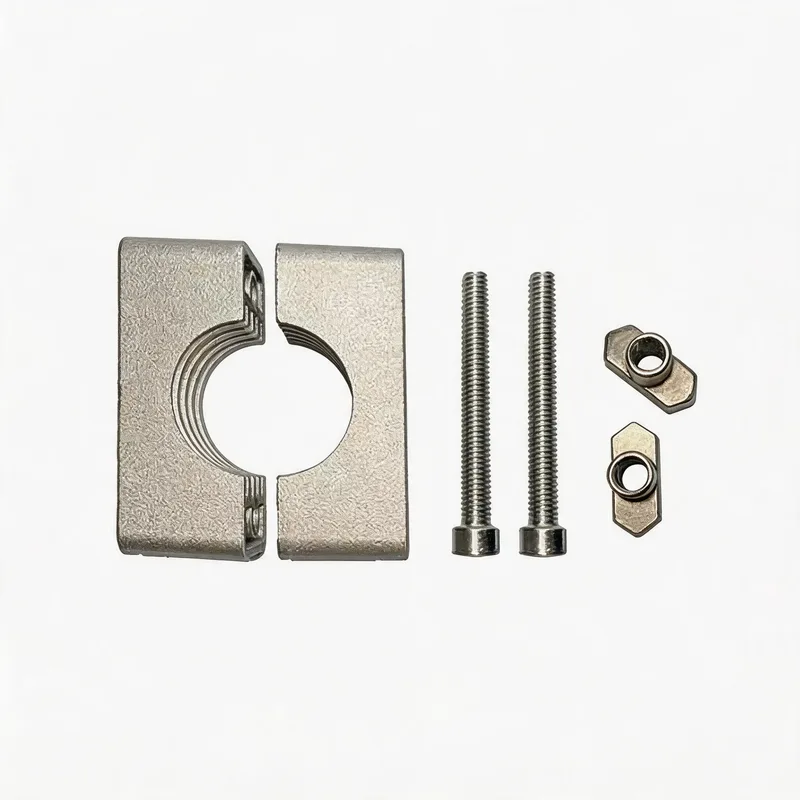

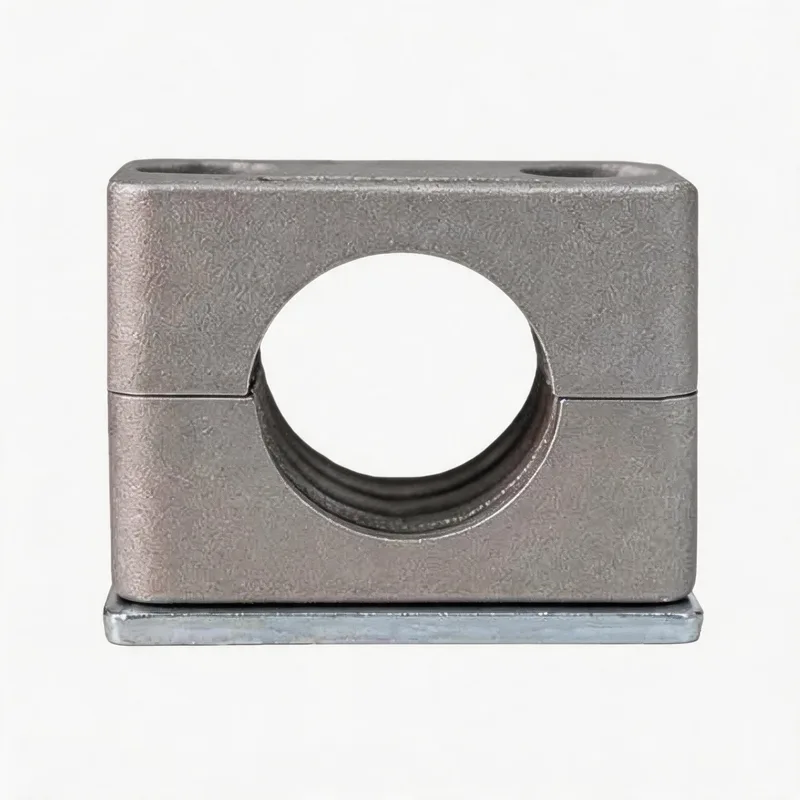

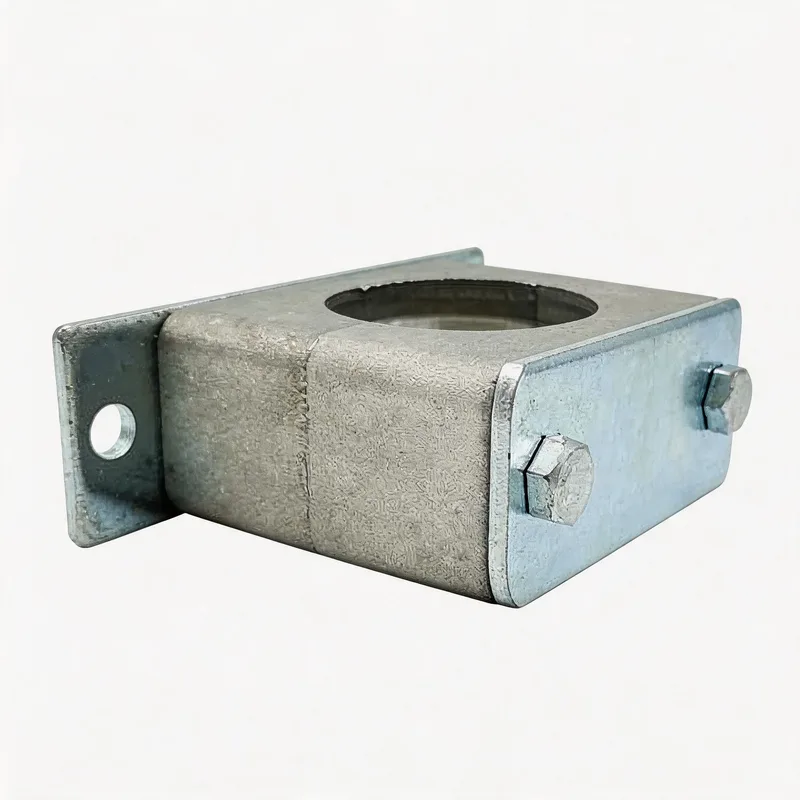

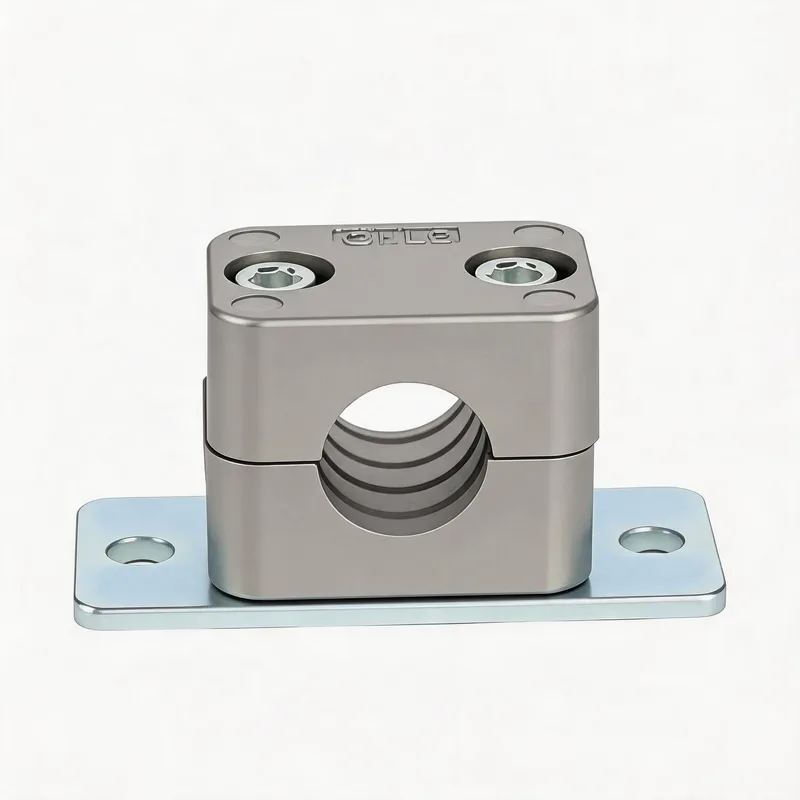

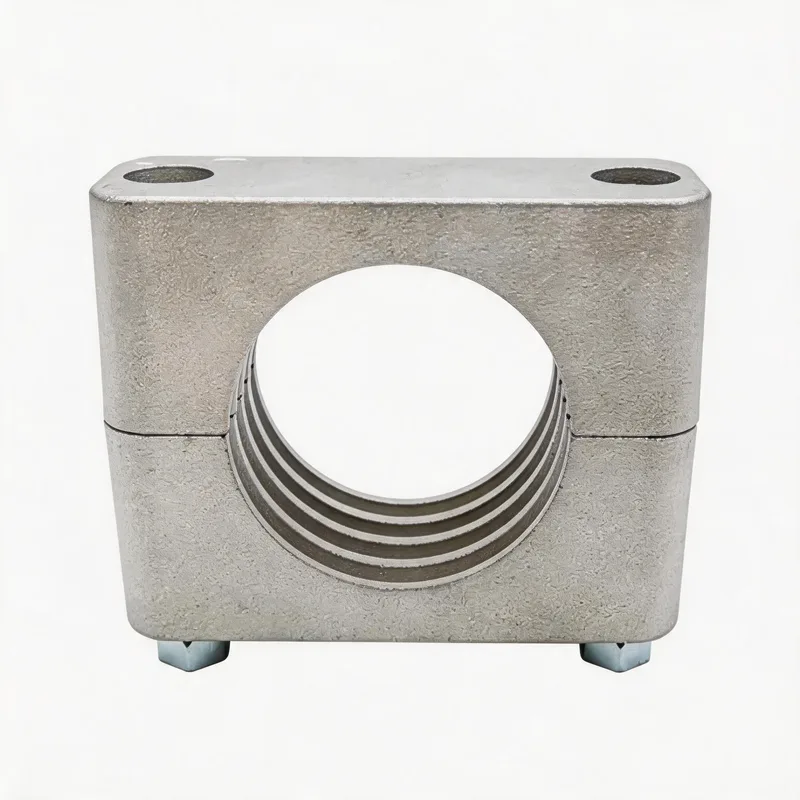

DIN3015 Part 1 · Single standard

Single standard — PP & Al · bolt M5 (n≤3) · M6 (n 4–7) · M8 (n 8–10) · M10 (n 11–13)

SizeOD range (mm)L1RB
18–9.516427
210–1116527
312–13.516627
414–17.518830
518–21201030
622–26201230
727–33221634
834–42242038
943–50262542
1051–62303046
1163–76343850
1277–89384454
1390–108425458

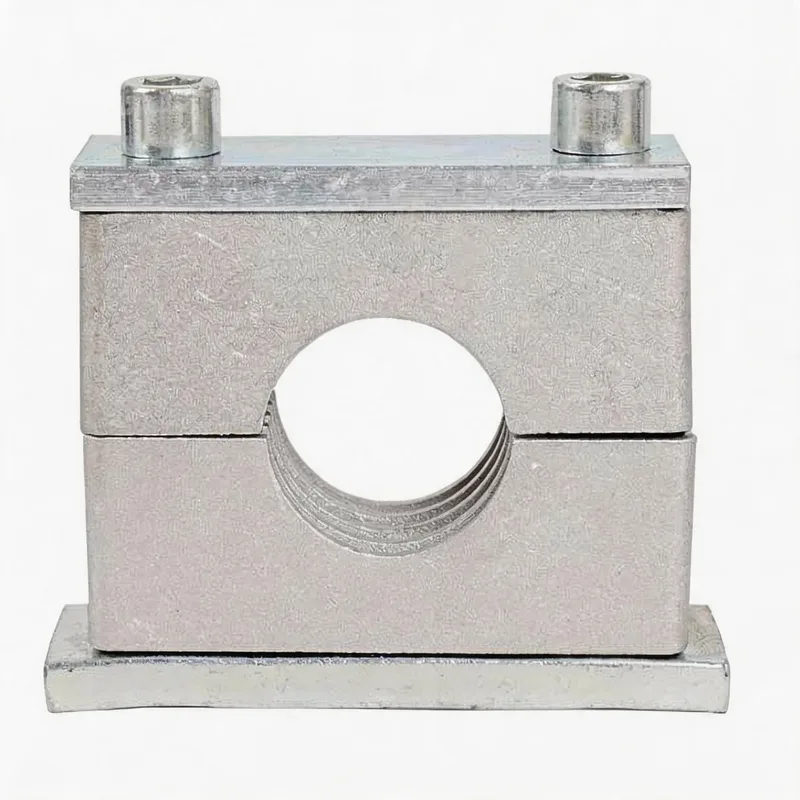

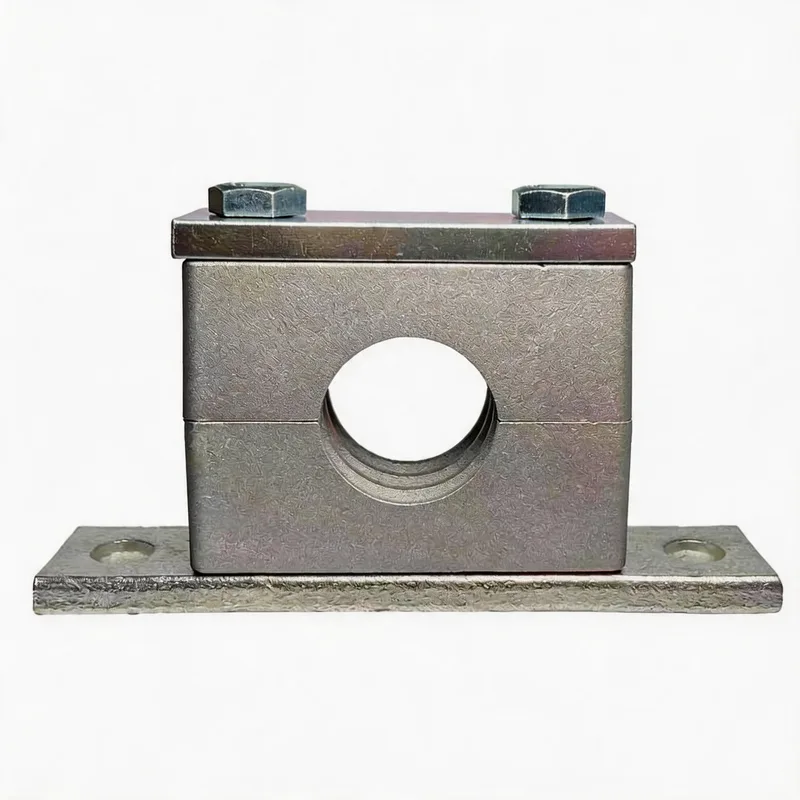

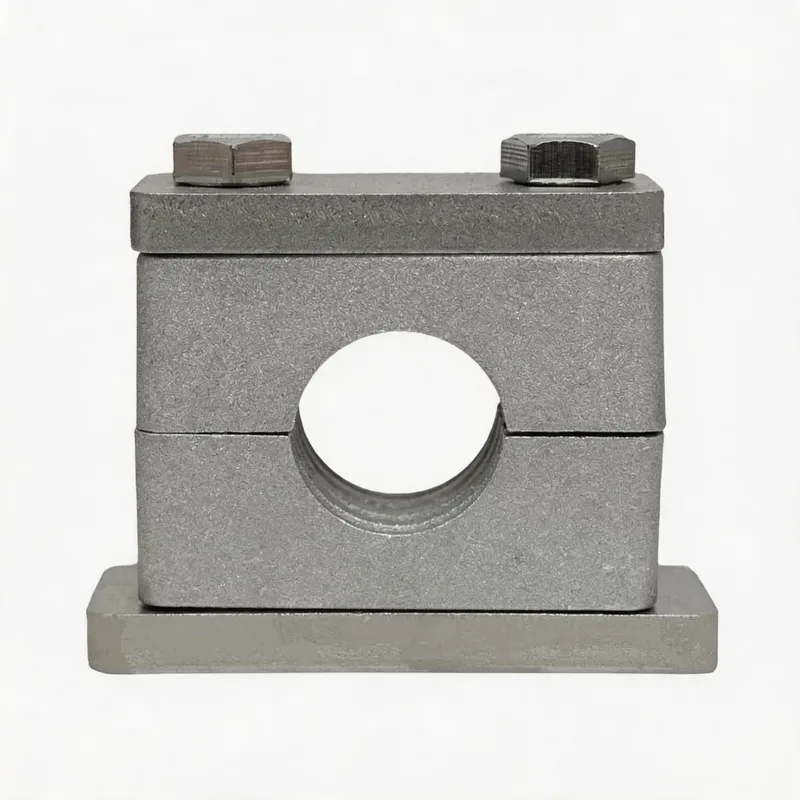

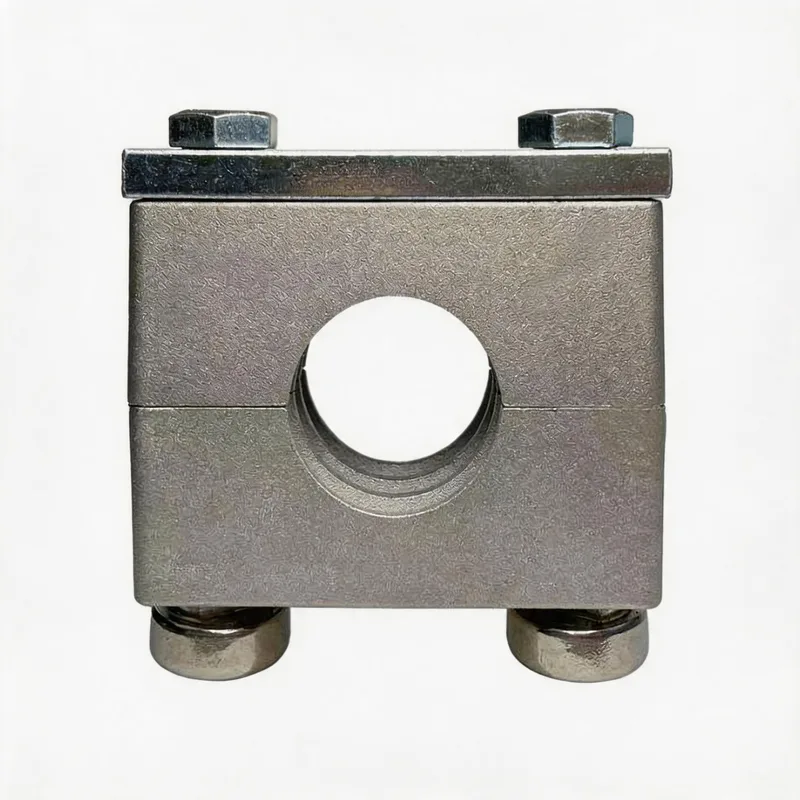

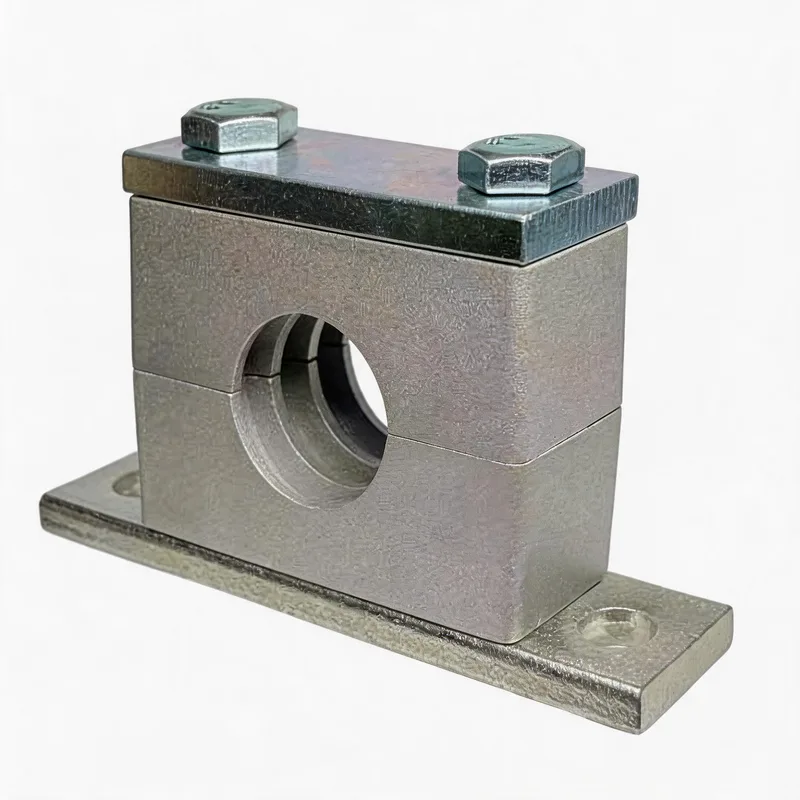

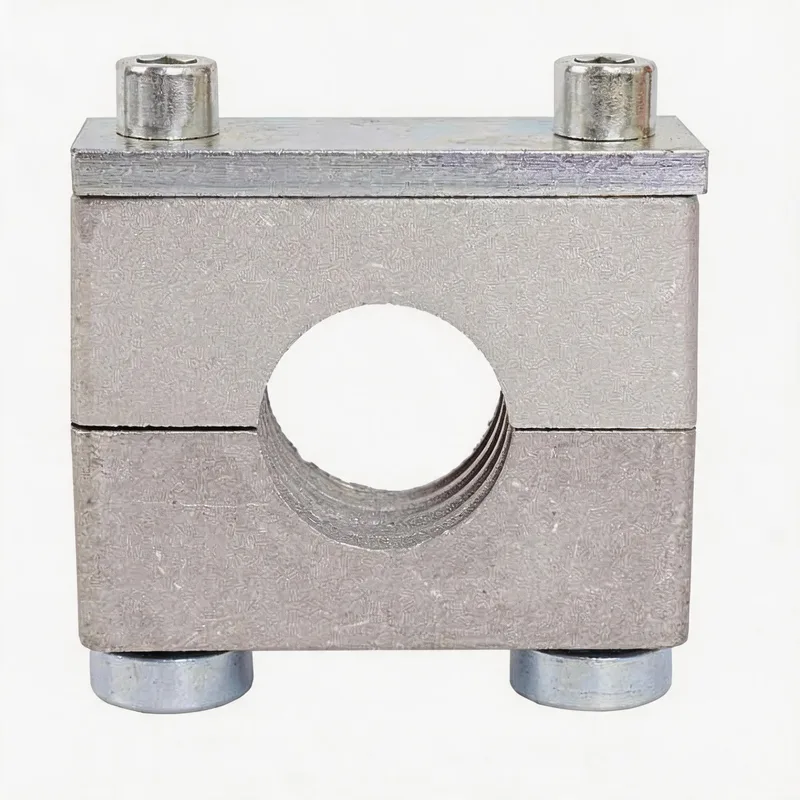

DIN3015 Part 2 · Heavy series

Heavy series — PP · PA · Al

SizeOD range (mm)L1RB
18–9.520430
210–11205.530
312–13.520630
414–17.522834
518–21221034
622–26241238
727–33261638
834–42302046
943–50322550
1051–62363054
1163–76403858
1277–89444462
1390–108485466

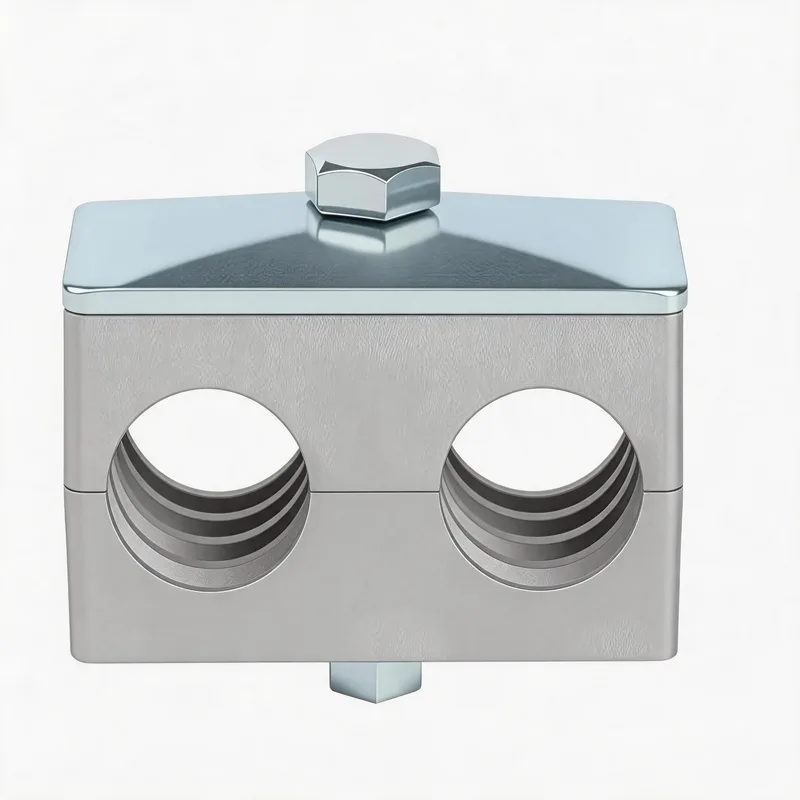

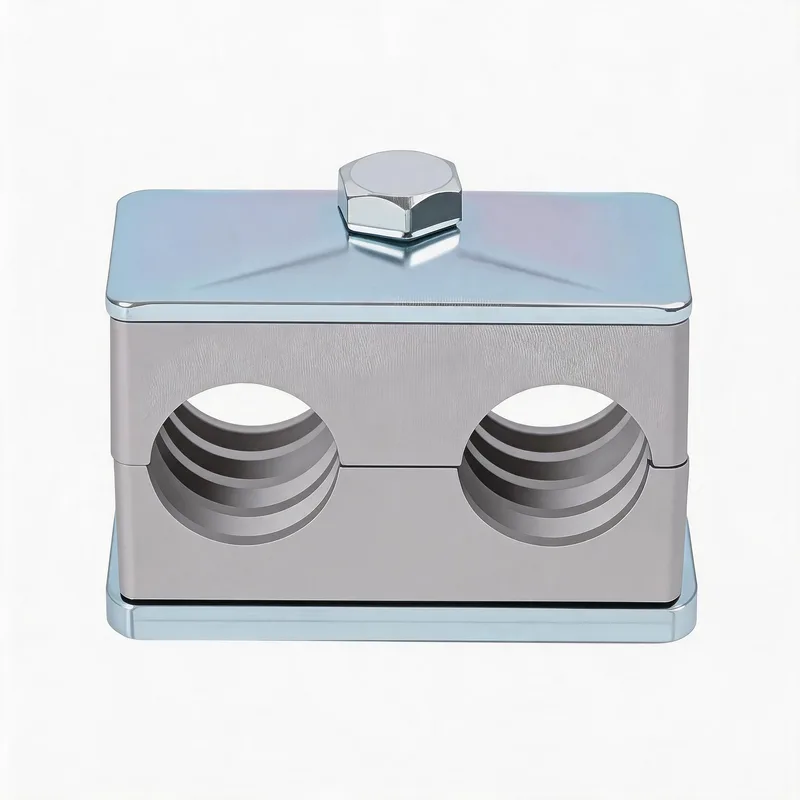

DIN3015 Part 3 · Twin series

Twin coupling — PP (polypropylene) — sizes 1–3 · bolt M5

SizeOD range (mm)LB
18–9.53227
210–113227
312–13.53227

WQGJ · Steel Pipe Clamp

Single-pipe (1GJ) and double-pipe (2GJ) clamps · OD 6–102 mm · single or double layer · with or without base plate · 适用于石油、化工、车辆、船舶、电力等液压系统 · 尺寸单位 mm

TypeModelOD (mm)L2BL1dH3H2H1PW·1L+baseW·1LW·2L+baseW·2L
Single1GJ386–16382565M833521460.320.170.450.3
Single1GJ5016–25502580M83964146–80.430.240.630.44
Single1GJ7525–427535110M1055.5931810–121.130.631.691.2
Single1GJ10042–6310040140M12681181812–151.821.132.852.14
Single1GJ15063–10215050190M12931681812–153.492.245.634.4
Twin2GJ386–163825104M833521460.520.270.730.49
Twin2GJ5016–255025130M83964146–80.710.391.060.74
Twin2GJ7525–427535185M1055.5931810–121.931.12.92.08
Twin2GJ10042–6310040240M12681181812–153.031.844.733.51
Twin2GJ15063–10215050340M12931681812–155.553.288.696.45

WQDG · Construction Machinery Clamp

Heavy-duty split clamp for hydraulic hoses and pipes on construction machinery · OD 16–275 mm · Material: carbon steel (galvanised) · H (mounting height) customer-specified · L = H + G  ·  尺寸单位 mm

OD (mm)BCGTdBolt
16382613157M6×25
22.5503518157M6×30
28654622159M8×35
35.5654926159M8×40
43.5755931159M8×45
49.59064382011.5M10×55
61.510079442011.5M10×60
7712098552513.5M12×75
90130108602513.5M12×80
103155126702513.5M12×90
116170140802513.5M12×100
142200170902513.5M12×115
1672251951102513.5M12×130
2212802501353218M16×160
2753303001603218M16×190
