WQL Light Pipe Clamp
545 SKUs across 13 series. Pipe OD ø6–ø102 mm (G30: ø6–ø32 mm). Mounting: welded base · long welded · rail nut · body only · stacking · shockproof.
Total SKUs
545
OD Range
6 – 102 mm
Groups
L0 – L8
Series
13
Pipe clamps for machine-tool coolant and hydraulic lines
Machine tools require compact routing, repeatable assembly and easy service access around coolant, lubrication and hydraulic circuits.
Material and environmentPP or PA inserts are typical; review surface protection where coolant exposure is continuous.
Common selection risks
- Dense frame layouts leave little room for large welded brackets.
- Coolant and chips can contaminate exposed hardware.

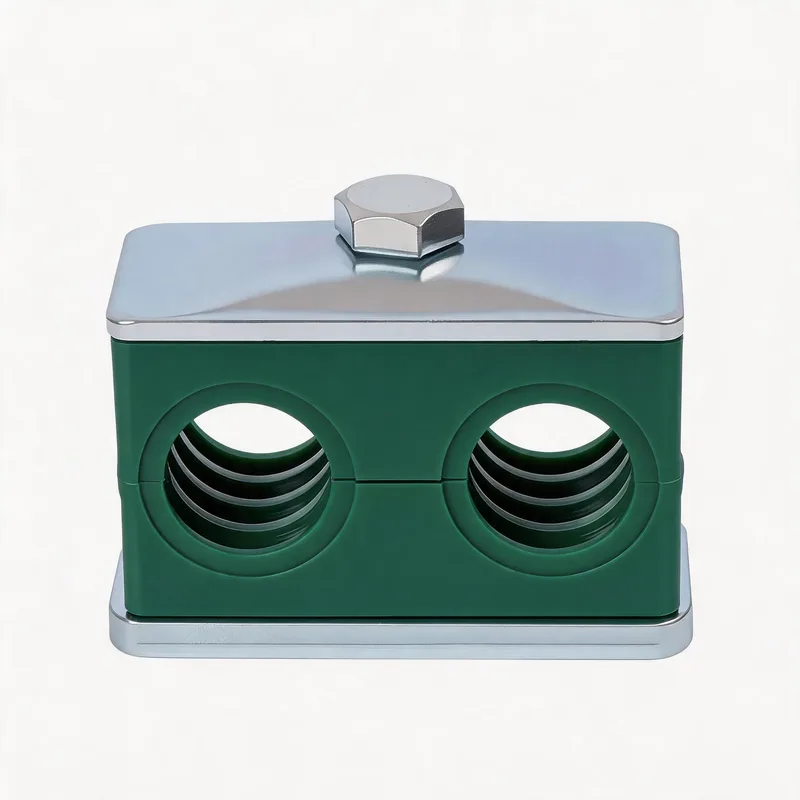

- Parallel lines need clear identification and repeatable spacing.
Recommended clamp approach

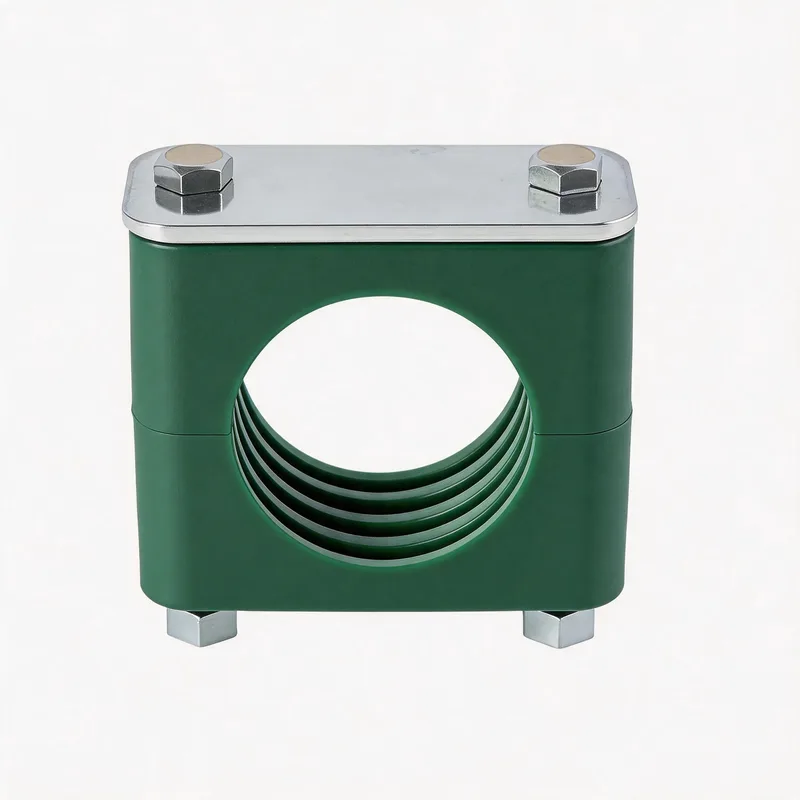

- Use rail-nut G9/G10/G12 for adjustable machine-frame layouts.

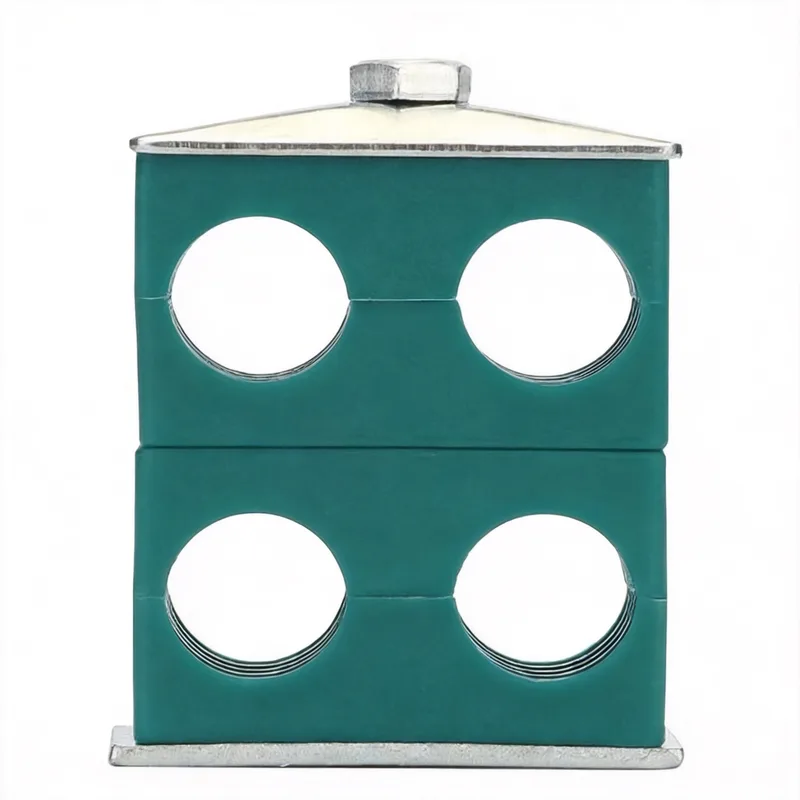

- Use stacking G18 to reduce footprint where access remains acceptable.
- Keep clamp groups consistent across repeated machine modules.
Technical notes for this selection
DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide
···
Need a custom quote or technical datasheet?
Need twin bases, mounting rails, cover plates or rail nuts? View Accessories & Components →
WQL*A · Three-pipe Clamp
Holds 3 pipes of same OD (order: WQL*A-3×OD) or 3 different ODs (order: WQL*A-OD1×OD2×OD3). Available ODs: 6, 8, 10, 12, 14, 16 mm. Bolt: M6×35.
| Component | L | L1 | L2 | H | B | S | D |
|---|---|---|---|---|---|---|---|
| Clamp body | 87 | 67 | 20 | 31 | 30 | 1 | — |
| Cover plate | 87 | 67 | — | — | 30 | 3 | — |
| Welded base | 87 | 67 | — | 6 | 30 | 3 | 12 |
Order codes (same OD)
| OD (mm) | Order code |
|---|---|
| 6 | WQL*A-3×6 |
| 8 | WQL*A-3×8 |
| 10 | WQL*A-3×10 |
| 12 | WQL*A-3×12 |
| 14 | WQL*A-3×14 |
| 16 | WQL*A-3×16 |
