WQL Light Pipe Clamp
545 SKUs across 13 series. Pipe OD ø6–ø102 mm (G30: ø6–ø32 mm). Mounting: welded base · long welded · rail nut · body only · stacking · shockproof.
Total SKUs
545
OD Range
6 – 102 mm
Groups
L0 – L8
Series
13

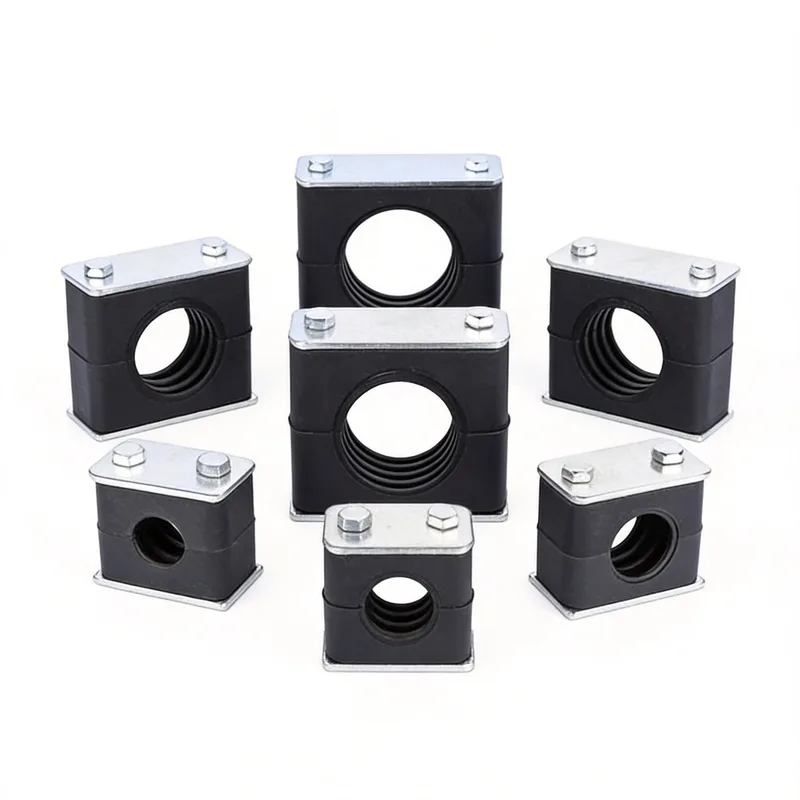

Pipe clamp selection for chemical and corrosive-media service
Chemical plants often combine corrosive atmosphere, washdown, polymer tubing and small-bore process lines. Clamp material compatibility matters as much as mechanical strength.
Material and environmentMaterial selection should be confirmed against fluid concentration, temperature and cleaning chemicals.
Common selection risks
- Chemical vapour can attack unsuitable inserts and plated hardware.
- Small-bore pipework is easy to over-clamp if the insert material is too hard.
- Frequent maintenance favours rail or body-only arrangements.
Recommended clamp approach
- Use G10/G12 rail-nut layouts where routing changes are likely.
- Use G14/G16 body-only clamps with project-specific insert materials.
- Check PP, PA, PVDF or stainless options against the chemical compatibility table.
Technical notes for this selection
DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide
···
Need a custom quote or technical datasheet?
Need twin bases, mounting rails, cover plates or rail nuts? View Accessories & Components →
WQL*A · Three-pipe Clamp
Holds 3 pipes of same OD (order: WQL*A-3×OD) or 3 different ODs (order: WQL*A-OD1×OD2×OD3). Available ODs: 6, 8, 10, 12, 14, 16 mm. Bolt: M6×35.
| Component | L | L1 | L2 | H | B | S | D |
|---|---|---|---|---|---|---|---|
| Clamp body | 87 | 67 | 20 | 31 | 30 | 1 | — |
| Cover plate | 87 | 67 | — | — | 30 | 3 | — |
| Welded base | 87 | 67 | — | 6 | 30 | 3 | 12 |
Order codes (same OD)
| OD (mm) | Order code |
|---|---|
| 6 | WQL*A-3×6 |
| 8 | WQL*A-3×8 |
| 10 | WQL*A-3×10 |
| 12 | WQL*A-3×12 |
| 14 | WQL*A-3×14 |
| 16 | WQL*A-3×16 |
