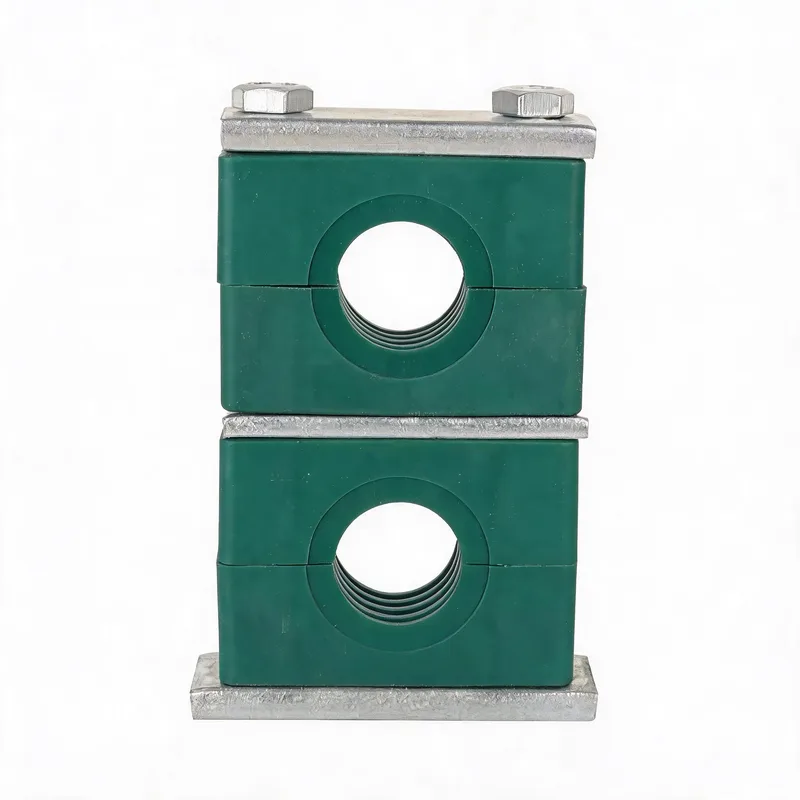

WQH·G5 DIN 3015 Pipe Clamp — ø10 mm

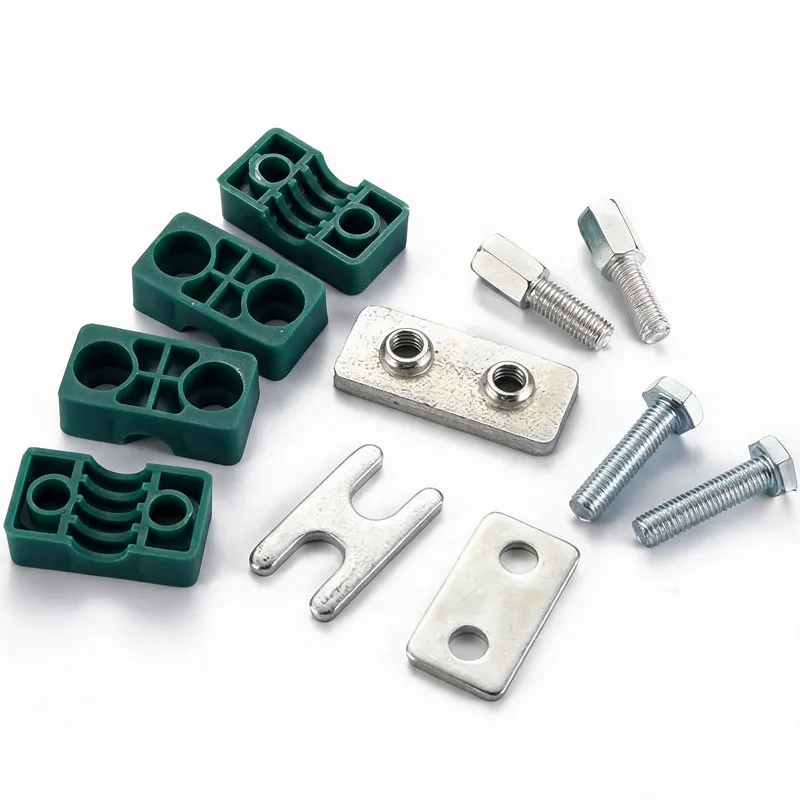

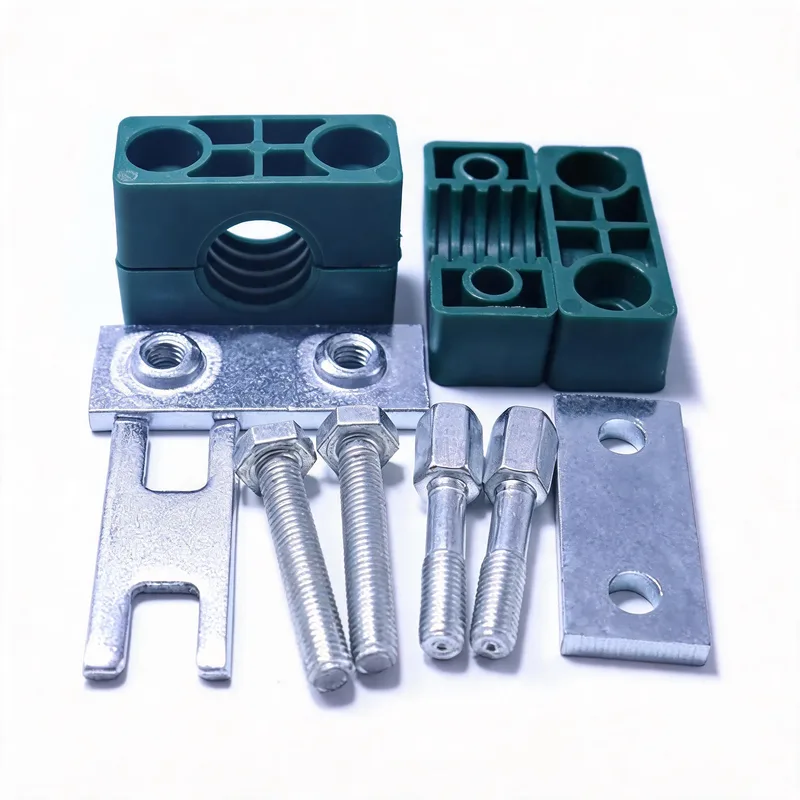

Stacking bolt + clamp body (max 5 layers) + safety locking plate · Tornillo apilable
| N.º de producto | WQH*G5-110 |
| Norma | DIN 3015 |
| Serie | WQH·G5 |
| Ø exterior | ø10 mm |
| Grupo de tamaño | H1 |
| Tornillo | M10×45 · |
| Montaje | Tornillo apilable |
| Stock | pcs |
| Plazo de entrega | undefined días |
| Material del cuerpo | Steel |
| Placa base | Steel |
| Material del tornillo | Steel |
| Apto para | Tubos ✓ · Mangueras — · Cables — |
| Amortiguación | Ninguna (abrazadera de acero rígida) |
| País de origen | China |
Technical context for this SKU
- DIN 3015 WQH·G5, pipe OD ø10 mm, size group H1.
- Bolt size is M10×45; mounting method is tornillo apilable.

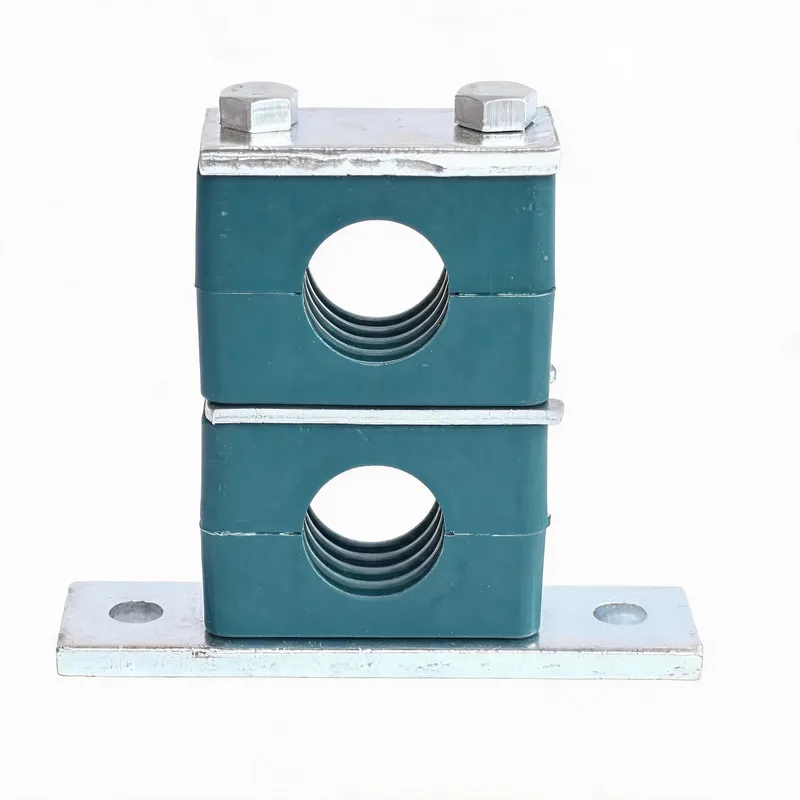

- WQH*G5-110 uses a tornillo apilable configuration; it supports stacked pipe layouts where installation space is limited.
- Standard material is Steel; stainless or surface-treatment options can be reviewed for corrosive or marine service.
Suitable applicationsCompact pipe runs, machine interiors and layouts where installation space is limited.
Selection checksConfirm pipe OD ø10 mm, group H1, mounting method, load direction and nearby bends or valves.
Environment noteFor outdoor, marine or corrosive service, review surface treatment or stainless alternatives.
Recommended RFQ details
- Part number or series: WQH*G5-110 / WQH·G5
- Pipe OD, quantity and whether cover plates, bases, rails or stacking parts are needed
- Fluid, pressure, temperature, vibration source and installation environment
- Material, surface treatment, certificate needs and delivery target
