Antivibración / Antichoque
48 SKUs · OD ø6 – 108 mm · L0 – L8
SKUs
48
OD Range
ø6 – 108 mm
Standard
Shockproof / NBR
Prefix
WQF*
Technical notes for this selection
DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide

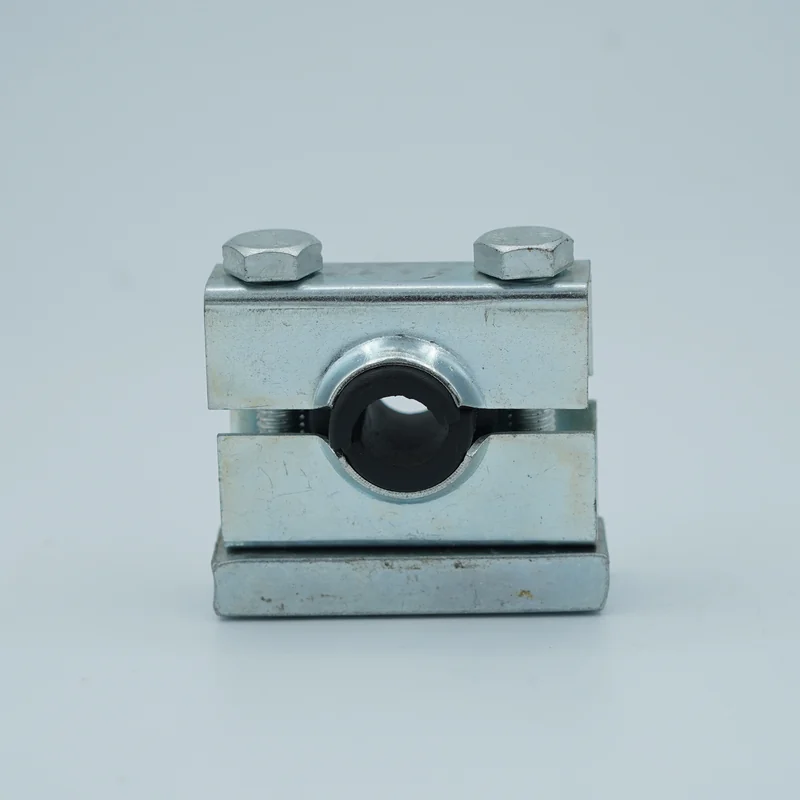

WQTX-25-26
WQTX · 25, 26 mm
Type
Elastic
OD
25, 26
Bolt
M8×30
Request quote
WQTX-27-28-30
WQTX · 27, 28, 30 mm
Type
Elastic
OD
27, 28, 30
Bolt
M8×40
Request quote
WQTX-34
WQTX · 34 mm
Type
Elastic
OD
34
Bolt
M8×45
Request quote
WQTX-38
WQTX · 38 mm
Type
Elastic
OD
38
Bolt
M8×50
Request quote
WQTX-42
WQTX · 42 mm
Type
Elastic
OD
42
Bolt
M8×50
Request quote
WQTX-45
WQTX · 45 mm
Type
Elastic
OD
45
Bolt
M8×55
Request quote
WQTX-48
WQTX · 48 mm
Type
Elastic
OD
48
Bolt
M8×55
Request quote
WQTX-54
WQTX · 54 mm
Type
Elastic
OD
54
Bolt
M8×65
Request quote
WQTX-60
WQTX · 60 mm
Type
Elastic
OD
60
Bolt
M10×70
Request quote
WQTX-65
WQTX · 65 mm
Type
Elastic
OD
65
Bolt
M10×75
Request quote
WQG(B)-1-73
WQG(B) · 73 mm
Type
Steel Shockproof
OD
73
Bolt
M20
Request quote
WQTX-73-76
WQTX · 73, 76 mm
Type
Elastic
OD
73, 76
Bolt
M10×90
Request quote
WQG(B)-1-76
WQG(B) · 76 mm
Type
Steel Shockproof
OD
76
Bolt
M20
Request quote
WQTX-80
WQTX · 80 mm
Type
Elastic
OD
80
Bolt
M12×80
Request quote
WQG(B)-1-89
WQG(B) · 89 mm
Type
Steel Shockproof
OD
89
Bolt
M20
Request quote
WQTX-89-90
WQTX · 89, 90 mm
Type
Elastic
OD
89, 90
Bolt
M12×95
Request quote
WQTX-100-102
WQTX · 100, 102 mm
Type
Elastic
OD
100, 102
Bolt
M12×110
Request quote
WQG(B)-2-102
WQG(B) · 102 mm
Type
Steel Shockproof
OD
102
Bolt
M24
Request quote
WQG(B)-2-108
WQG(B) · 108 mm
Type
Steel Shockproof
OD
108
Bolt
M24
Request quote
WQG(B)-2-114
WQG(B) · 114 mm
Type
Steel Shockproof
OD
114
Bolt
M24
Request quote
WQTX-114
WQTX · 114 mm
Type
Elastic
OD
114
Bolt
M16×105
Request quote
WQTX-120
WQTX · 120 mm
Type
Elastic
OD
120
Bolt
M16×115
Request quote
WQG(B)-3-127
WQG(B) · 127 mm
Type
Steel Shockproof
OD
127
Bolt
M24
Request quote
WQTX-130
WQTX · 130 mm
Type
Elastic
OD
130
Bolt
M16×130
Request quote
WQG(B)×-** · Steel Shockproof Clamp
Fixed steel shockproof pipe clamp for high-temperature, high-pressure and strong-vibration pipelines · 适用于冶金、石油、化工、车辆、船舶、电力等机械液压系统 · OD 73–426 mm · 10 series · Material: carbon steel (galvanised) · 尺寸单位 mm
| Series | OD (mm) | L1 | L2 | L3 | H1 | H2 | B | S | S1 | P | M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 73 | 190 | 140 | 65 | 170 | 85 | 115 | 20 | 20 | 5 | M20 |
| 76 | 190 | 140 | 65 | 170 | 85 | 115 | 20 | 20 | 5 | M20 | |
| 89 | 190 | 140 | 65 | 170 | 85 | 115 | 20 | 20 | 5 | M20 | |
| 2 | 102 | 210 | 150 | 65 | 210 | 105 | 115 | 20 | 20 | 5 | M24 |
| 108 | 210 | 150 | 65 | 210 | 105 | 115 | 20 | 20 | 5 | M24 | |
| 114 | 210 | 150 | 65 | 210 | 105 | 115 | 20 | 20 | 5 | M24 | |
| 3 | 127 | 250 | 190 | 90 | 250 | 125 | 155 | 40 | 25 | 5 | M24 |
| 133 | 250 | 190 | 90 | 250 | 125 | 155 | 40 | 25 | 5 | M24 | |
| 140 | 250 | 190 | 90 | 250 | 125 | 155 | 40 | 25 | 5 | M24 | |
| 4 | 152/159 | 290 | 220 | 100 | 280 | 140 | 180 | 50 | 30 | 8 | M30 |
| 168 | 290 | 220 | 100 | 280 | 140 | 180 | 50 | 30 | 8 | M30 | |
| 5 | 219 | 400 | 310 | 150 | 330 | 165 | 220 | 90 | 30 | 8 | M30 |
| 245 | 400 | 310 | 150 | 330 | 165 | 220 | 90 | 30 | 8 | M30 | |
| 6 | 273 | 480 | 380 | 160 | 430 | 230 | 240 | 120 | 36 | 10 | M36 |
| 290 | 480 | 380 | 160 | 430 | 230 | 240 | 120 | 36 | 10 | M36 | |
| 7 | 325 | 500 | 400 | 170 | 480 | 240 | 260 | 140 | 36 | 10 | M36 |
| 8 | 351 | 530 | 430 | 180 | 510 | 255 | 280 | 150 | 36 | 10 | M36 |
| 9 | 377 | 580 | 480 | 190 | 540 | 270 | 300 | 160 | 36 | 10 | M36 |
| 10 | 426 | 610 | 510 | 200 | 530 | 290 | 300 | 180 | 36 | 10 | M36 |
WQG(A)×-** · Steel U-Shockproof Pipe Clamp
U-steel fixed shockproof pipe clamp · OD 222–800 mm · 9 size groups · H3=60, H4=90, B1=140, B2=290, B3=150, D2=35 (constant) · bolt grade 4.8 / 8.8 / A2-70 / A4-80 · 材料: C碳钢 · SS304 · SS316/316L · 尺寸单位 mm
| OD range (mm) | L1 | L2 | L3 | L4 | H1 | H2 | Bolt | Pads |
|---|---|---|---|---|---|---|---|---|
| 222–275 | 420 | 330 | 580 | 490 | 220 | 220 | M30×420 | 4 |
| 276–325 | 460 | 370 | 620 | 530 | 240 | 240 | M30×460 | 4 |
| 326–370 | 510 | 420 | 670 | 580 | 260 | 260 | M30×500 | 4 |
| 371–425 | 570 | 480 | 750 | 640 | 290 | 290 | M30×560 | 4 |
| 426–485 | 620 | 530 | 800 | 730 | 305 | 305 | M30×590 | 4 |
| 486–550 | 680 | 590 | 860 | 790 | 370 | 370 | M30×720 | 4 |
| 551–630 | 760 | 670 | 940 | 870 | 410 | 410 | M30×800 | 5 |
| 631–715 | 845 | 755 | 1025 | 955 | 452 | 452 | M30×884 | 5 |
| 716–800 | 940 | 850 | 1120 | 1050 | 495 | 495 | M30×970 | 5 |
WQTX · Elastic Pipe Clamp
Two-piece elastic clamp with rubber liner for vibration isolation · OD 25–219 mm · 21 sizes · Material: carbon steel (galvanised) + rubber · G1 present on smaller sizes (integral back plate) · H present on mid-range sizes · 尺寸单位 mm · 重量 kg
| OD (mm) | A | B | C | D | E | G | G1 | H | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 25,26 | 90 | 40 | 23 | 38 | 6 | 12 | 30 | — | M8×30 | 0.26 |
| 27,28,30 | 90 | 40 | 26 | 41 | 12 | 12 | 30 | — | M8×40 | 0.27 |
| 34 | 90 | 40 | 30 | 45 | 20 | 12 | 30 | — | M8×45 | — |
| 38 | 90 | 40 | 34 | 49 | 11 | 12 | 30 | — | M8×50 | 0.44 |
| 42 | 90 | 40 | 37 | 52 | 18 | 12 | 30 | — | M8×50 | — |
| 45 | 117 | — | 39 | 54 | 22 | 20 | — | 15 | M8×55 | 0.45 |
| 48 | 117 | — | 41 | 56 | 26 | 20 | — | 15 | M8×55 | 0.45 |
| 54 | 117 | 50 | 45 | 60 | 30 | 40 | — | — | M8×65 | 0.46 |
| 60 | 117 | 50 | 50 | 65 | 30 | 40 | — | — | M10×70 | 0.87 |
| 65 | 154 | 50 | 54 | 69 | 38 | 30 | — | — | M10×75 | 0.88 |
| 73,76 | 154 | 50 | 60 | 75 | 54 | 30 | — | — | M10×90 | 0.89 |
| 80 | 154 | 50 | 61 | 79 | 42 | 30 | — | 18 | M12×80 | 1.07 |
| 89,90 | 174 | 50 | 67 | 85 | 54 | 40 | — | 18 | M12×95 | 1.1 |
| 100,102 | 174 | 50 | 74 | 92 | 68 | 40 | — | 18 | M12×110 | 1.13 |
| 114 | 174 | 50 | 81 | 96 | 58 | 40 | — | 18 | M16×105 | 1.76 |
| 120 | 214 | 60 | 85 | 100 | 66 | 50 | 50 | 15 | M16×115 | 1.79 |
| 130 | 214 | 60 | 93 | 108 | 80 | 50 | 50 | 15 | M16×130 | 1.84 |
| 140 | 214 | 60 | 100 | 115 | 68 | 50 | 50 | 15 | M16×125 | 3.6 |
| 165 | 254 | 90 | 118 | 133 | 104 | 60 | — | 80 | M16×165 | 3.73 |
| 168 | 254 | 90 | 120 | 135 | 108 | 60 | — | 80 | M16×165 | 3.73 |
| 219 | 350 | 90 | 138 | 156 | 116 | 80 | — | 18 | M16×170 | 5.02 |
