WQL Light Pipe Clamp
545 SKUs across 13 series. Pipe OD ø6–ø102 mm (G30: ø6–ø32 mm). Mounting: welded base · long welded · rail nut · body only · stacking · shockproof.
Total SKUs
545
OD Range
6 – 102 mm
Groups
L0 – L8
Series
13
Pipe clamps for steel-plant hydraulic and lubrication lines
Metallurgy applications place pipe supports near heat, scale, dust and heavy mechanical loads. The clamp layout should allow thermal movement while keeping hydraulic and lubrication lines protected from impact.

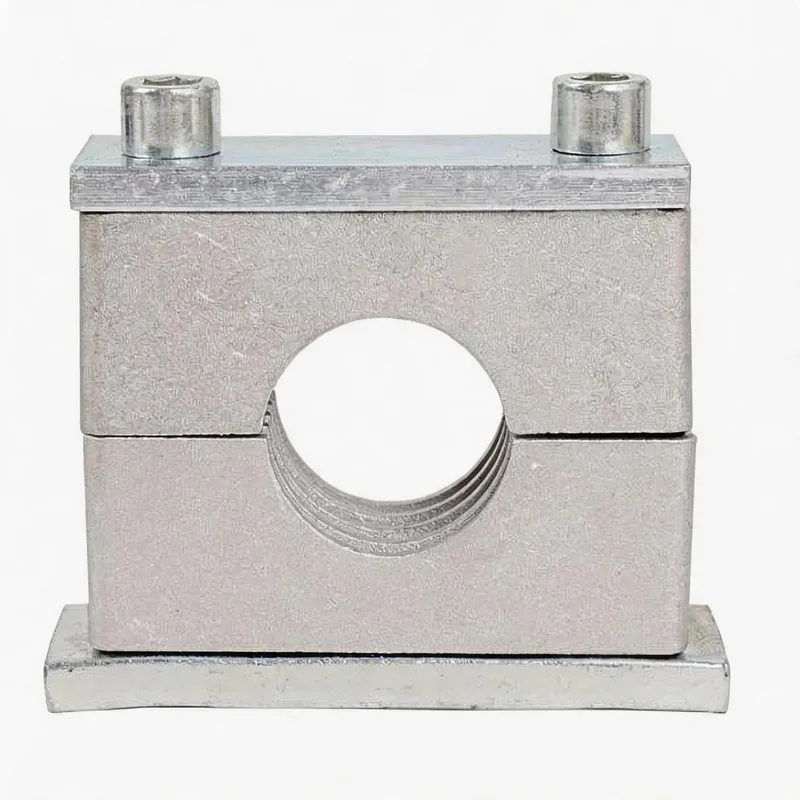

Material and environmentCarbon-steel hardware with suitable coating is common; review PA or metal inserts for elevated temperature zones.
Common selection risks
- Thermal expansion can load rigid supports if spacing is too tight.
- Dust and scale make rail-mounted components harder to inspect.
- Long hydraulic runs need strong base support at direction changes.
Recommended clamp approach
- Use long welded-base G4/G5/G6 for main hydraulic routes.
- Use rail-nut G9 where adjustment is needed during equipment commissioning.
- Use body-only G13 when the support structure is supplied by the equipment maker.
Technical notes for this selection
DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide
···
Need a custom quote or technical datasheet?
Need twin bases, mounting rails, cover plates or rail nuts? View Accessories & Components →
WQL*A · Three-pipe Clamp
Holds 3 pipes of same OD (order: WQL*A-3×OD) or 3 different ODs (order: WQL*A-OD1×OD2×OD3). Available ODs: 6, 8, 10, 12, 14, 16 mm. Bolt: M6×35.
| Component | L | L1 | L2 | H | B | S | D |
|---|---|---|---|---|---|---|---|
| Clamp body | 87 | 67 | 20 | 31 | 30 | 1 | — |
| Cover plate | 87 | 67 | — | — | 30 | 3 | — |
| Welded base | 87 | 67 | — | 6 | 30 | 3 | 12 |
Order codes (same OD)
| OD (mm) | Order code |
|---|---|
| 6 | WQL*A-3×6 |
| 8 | WQL*A-3×8 |
| 10 | WQL*A-3×10 |
| 12 | WQL*A-3×12 |
| 14 | WQL*A-3×14 |
| 16 | WQL*A-3×16 |
