WQL Light Pipe Clamp
545 SKUs across 13 series. Pipe OD ø6–ø102 mm (G30: ø6–ø32 mm). Mounting: welded base · long welded · rail nut · body only · stacking · shockproof.
Total SKUs
545
OD Range
6 – 102 mm
Groups
L0 – L8
Series
13
Pipe clamps for construction machinery hydraulics
Mobile equipment sees vibration, shock, mud, water spray and frequent pressure cycling. Clamp selection should protect both rigid pipes and hose transition points.
Material and environmentReview zinc plating, stainless hardware or coated parts for outdoor exposure and washdown.
Common selection risks
- Shock loads can fatigue pipework near pumps and cylinders.
- Mud and washdown increase corrosion and maintenance demands.
- Hose-to-pipe transitions need extra support to avoid fretting.
Recommended clamp approach
- Use shockproof G30 near high-vibration or pressure-pulse points.

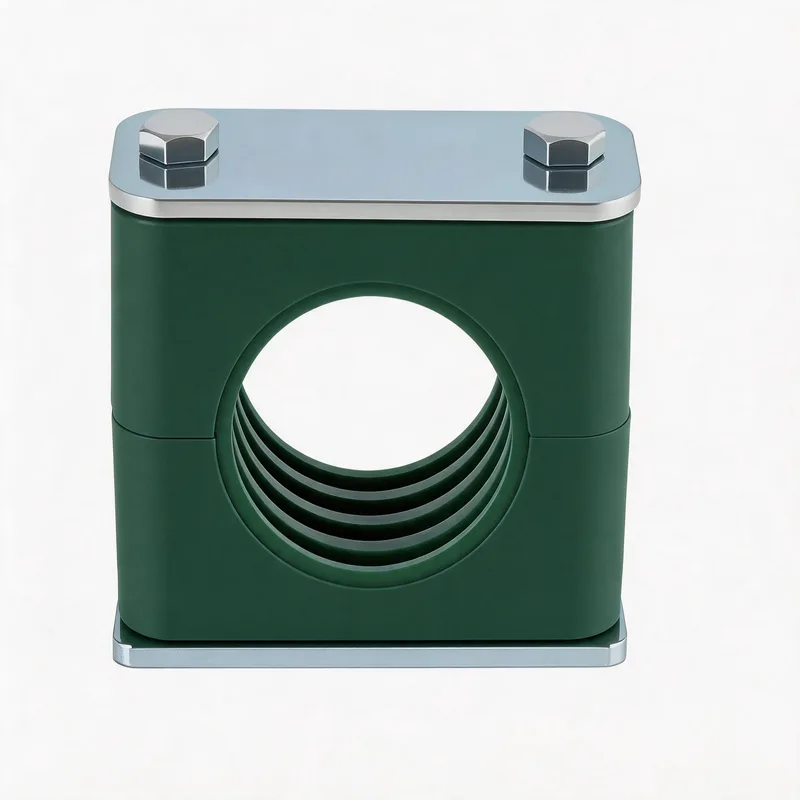

- Use cover-plate G3/G6/G16 where retention is more important than quick removal.

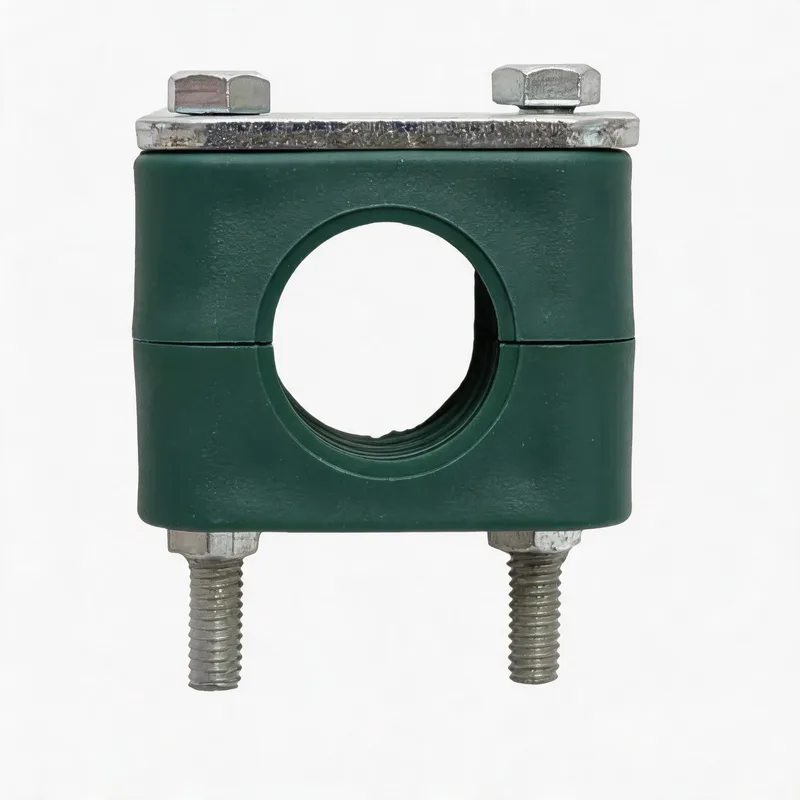

- Use long welded-base G5/G6 on chassis brackets.
Technical notes for this selection
DIN 3015 standard guideParts 1, 2 and 3 explained for pipe clamp selection.Read guide Pipe clamp selection guideChoose by OD, load, vibration, material and mounting.Read guide Pipe clamp mounting methodsCompare welded bases, rails, stacking and mounting hardware.Read guide Accessories and complete BOM guideSpecify base plates, cover plates, rails, rail nuts and bolts as a complete set.Read guide Pipe clamp material guideCompare PP, PA, NBR, metal and stainless options.Read guide Pipe clamp spacing guidePlan support spacing around bends, valves and vibration.Read guide
···
Need a custom quote or technical datasheet?
Need twin bases, mounting rails, cover plates or rail nuts? View Accessories & Components →
WQL*A · Three-pipe Clamp
Holds 3 pipes of same OD (order: WQL*A-3×OD) or 3 different ODs (order: WQL*A-OD1×OD2×OD3). Available ODs: 6, 8, 10, 12, 14, 16 mm. Bolt: M6×35.
| Component | L | L1 | L2 | H | B | S | D |
|---|---|---|---|---|---|---|---|
| Clamp body | 87 | 67 | 20 | 31 | 30 | 1 | — |
| Cover plate | 87 | 67 | — | — | 30 | 3 | — |
| Welded base | 87 | 67 | — | 6 | 30 | 3 | 12 |
Order codes (same OD)
| OD (mm) | Order code |
|---|---|
| 6 | WQL*A-3×6 |
| 8 | WQL*A-3×8 |
| 10 | WQL*A-3×10 |
| 12 | WQL*A-3×12 |
| 14 | WQL*A-3×14 |
| 16 | WQL*A-3×16 |
